Application
Warehouse Loading Dock
Lift Mechanism
Hydraulic Driving
Carrying Capacity
6-15 Ton
Feature
Explosion-Proof, Automatic
Certification
CE, RoHS, ISO 9001
Standard Size
2500*2000*500 (Customized)
Up-Down Scope
Up+350mm, Down-300mm
Surface Treatment
Powder Coated
Power Supply
1-Phase 220V / 3-Phase 380V
Color
Blue, Grey, Black, Yellow

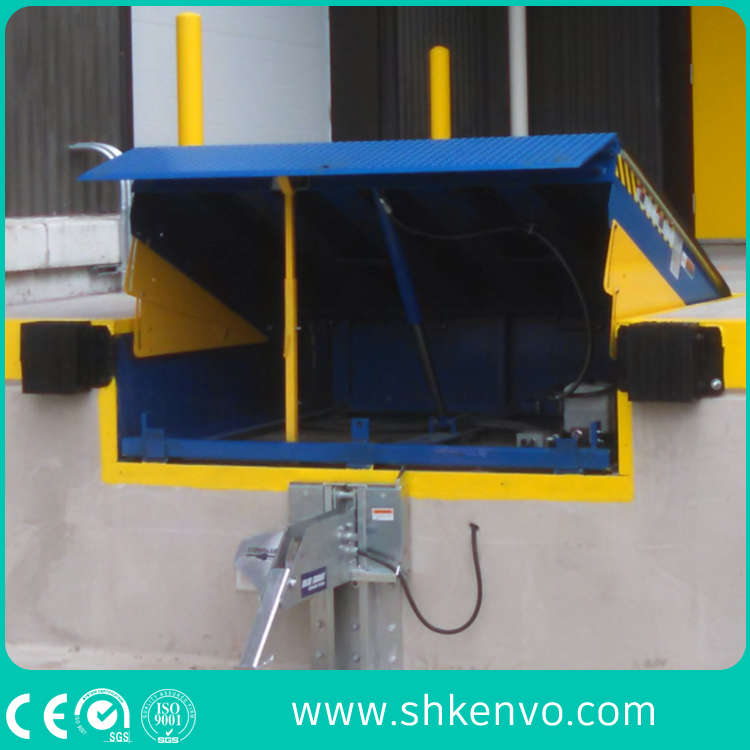

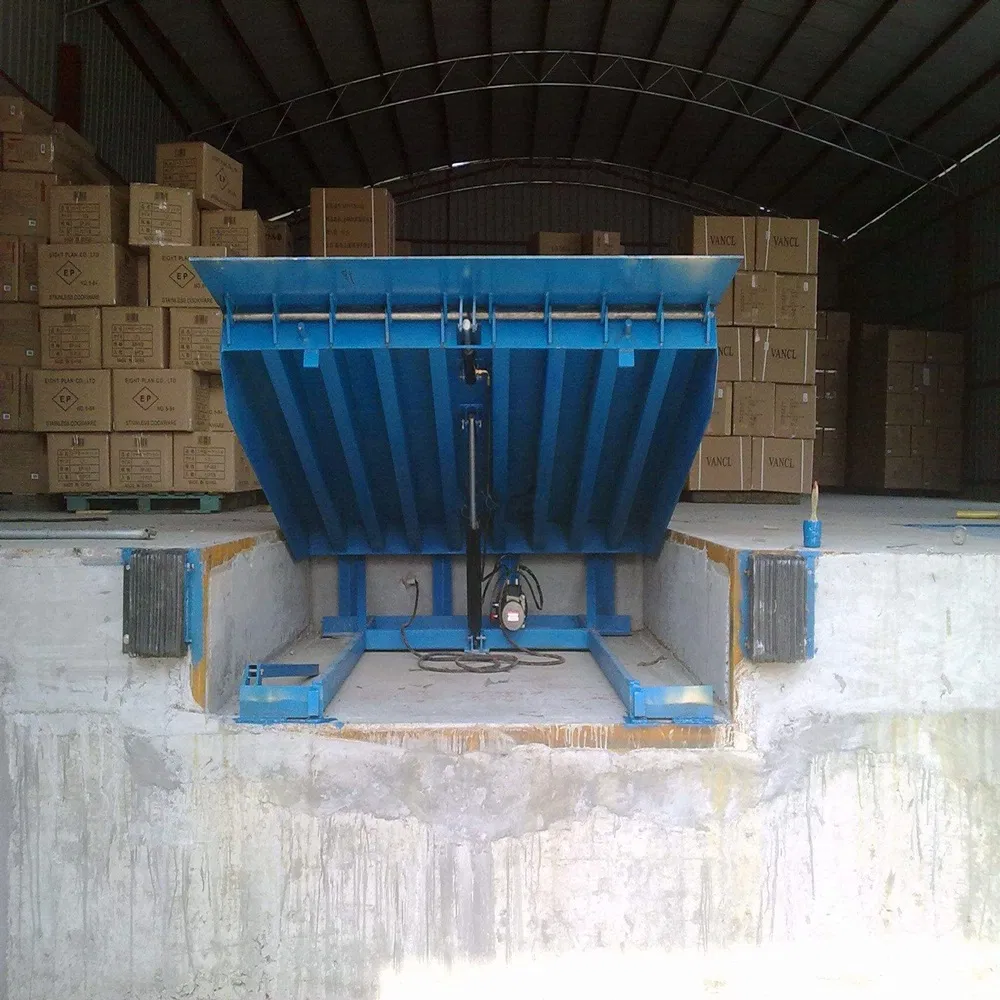

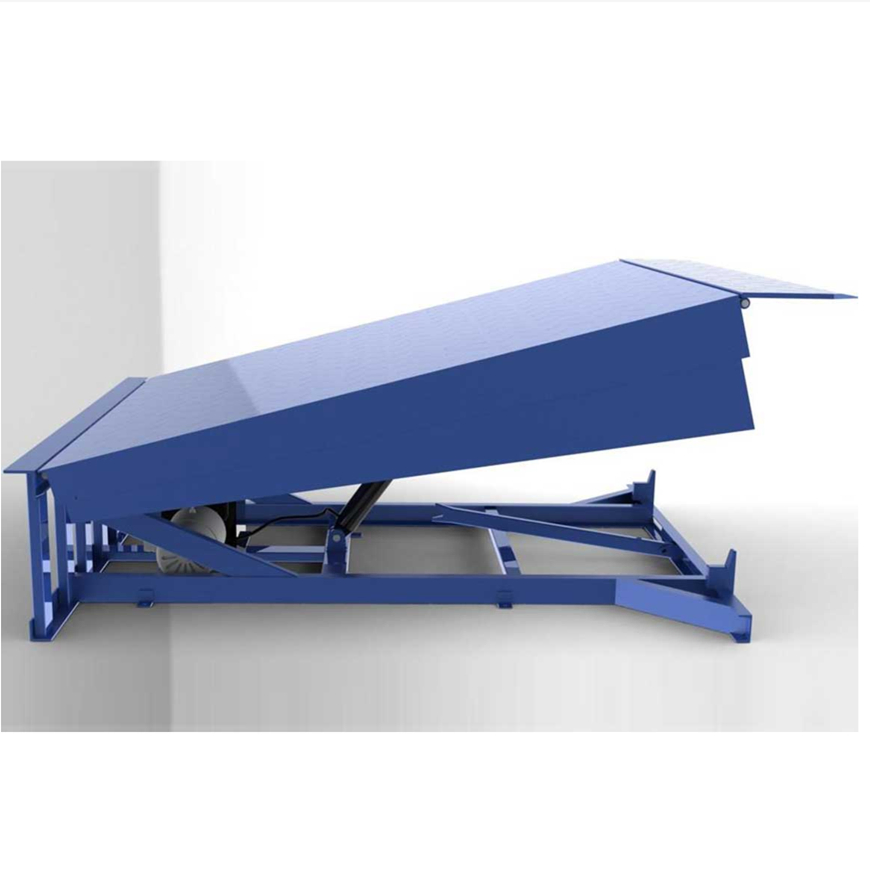

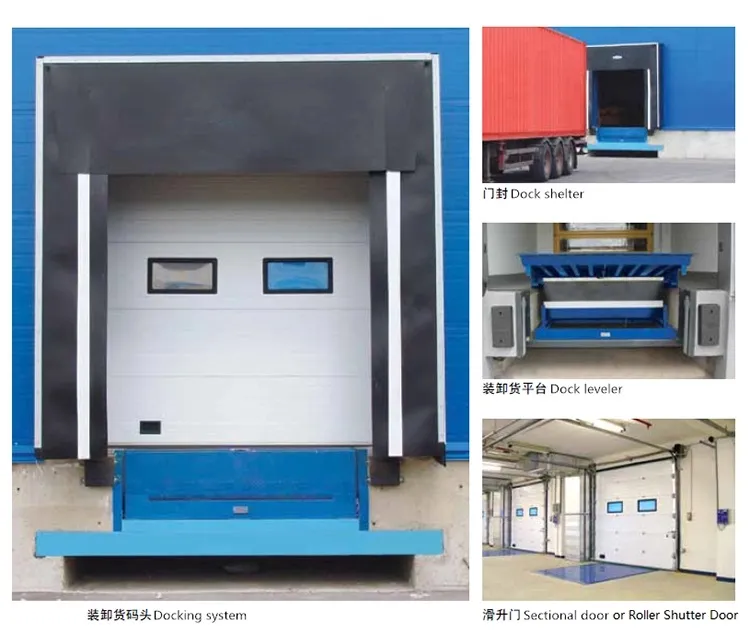

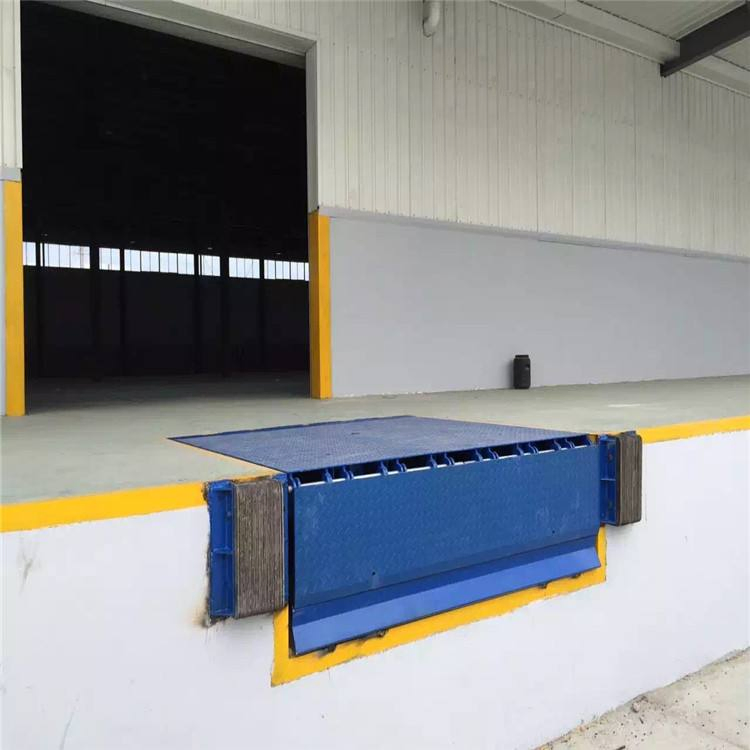

Automatic Stationary Fixed Hydraulic Dock Leveler or Dock Ramp: Used in loading bays or docks, it allows forklifts to enter truck containers directly. This significantly improves loading and unloading efficiency, making it essential for modern warehouses and factories.

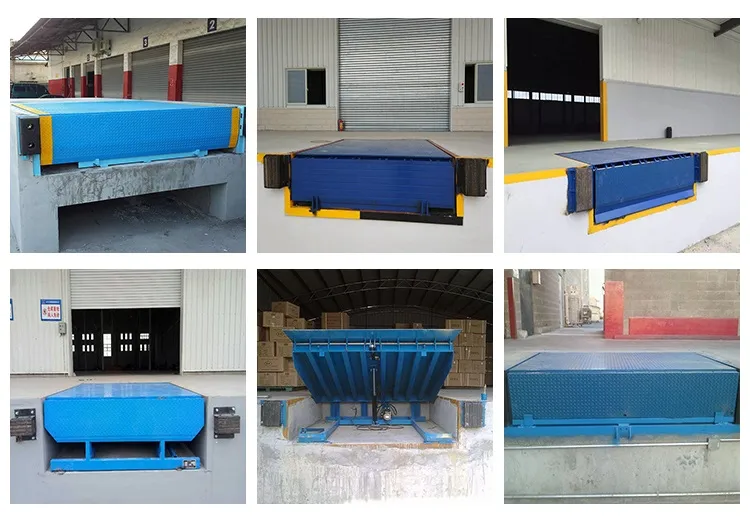

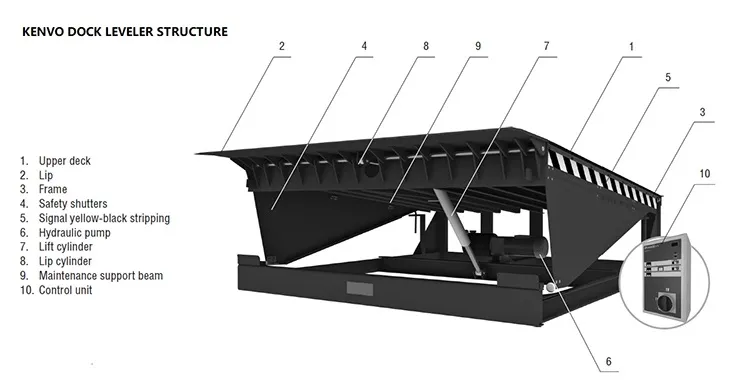

Overview: Dock Ramps are widely used in logistics centers, warehouses, and factory dispatch areas. Since container floors are often not level with the loading bay, manual labor is usually required. Our automatic dock leveler solves this by using a hydraulic motor to drive the platform, creating a seamless joint for forklifts and trolleys.
01
The assembly bears 120% of nominal load capacity. Deformation is within 3mm under 24-hour static pressure and recovers fully.
02
High-strength 8mm+ thick steel plate platform with anti-skid groove milling.
03
Super-High-Temperature heat-treated Hinge and Shaft for maximum durability.
04
European-imported hydraulic drive station with stable power and high-standard leak-proof seals.
05
Epoxy resin paint coating for high anti-corrosion and durability.
What is the standard weight capacity of the dock leveler?
The equipment is designed to handle loads ranging from 6 to 15 tons, with an assembly that can withstand 120% of its nominal load capacity.
Can the size of the dock leveler be customized?
Yes, while the standard size is 2500*2000*500mm, we offer customization to meet specific warehouse pit dimensions.
What kind of power supply is required?
The system supports both 1-Phase 220V and 3-Phase 380V power supplies to accommodate different industrial environments.
What certifications does this equipment carry?
Our stationary fixed dock levelers are fully certified with CE, RoHS, and ISO 9001 standards.
How does the hydraulic system perform under high frequency?
The hydraulic drive station is imported from Europe and designed for high-frequency operation with very low oil temperature and high-standard seals to prevent leaks.
What is the adjustment range for different truck heights?
The leveler provides a vertical range of Up +350mm and Down -300mm to ensure a seamless bridge between the dock and various container heights.
