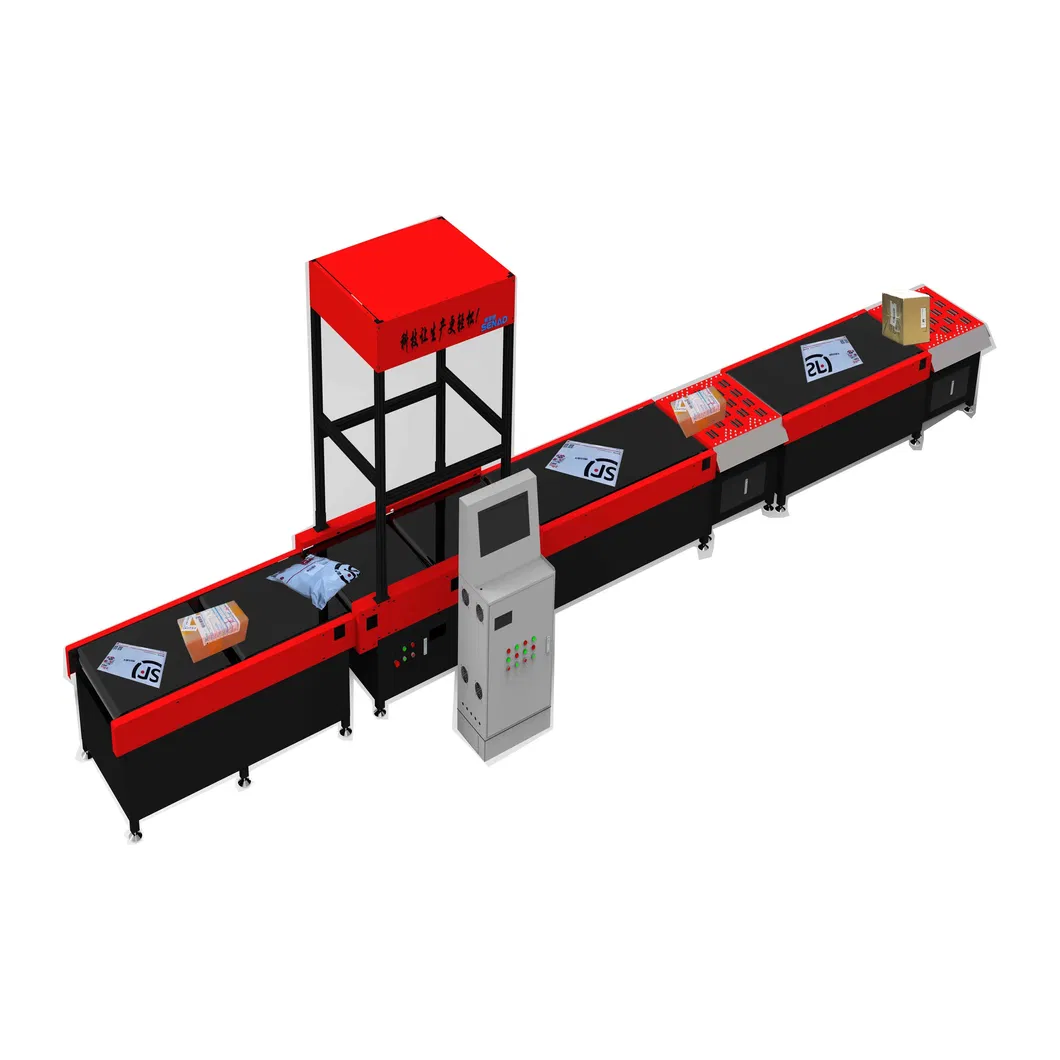

The DWS adopts a self-developed high-resolution intelligent barcode reading camera, volume measuring instrument, and dynamic weighing module. It efficiently completes real-time accurate collection and output of volume, barcode, and weight information. The system enables automatic sorting of express parcels when integrated with sorting equipment.
| Parts Configuration | |
|---|---|
| Industrial Computer | Intel I5 |
| Display | 19.5 inches LCD |
| Camera | 20 Million Pixel Industrial Camera |
| Keyboard/Mouse | Branded Peripherals |
| Load Cell | 100kg Capacity |
| Technical Parameters | |
|---|---|
| Weighing Range | 30g ~ 60kg |
| Dimensioning Range | 50*50*5 ~ 800*800*800mm |
| Capacity | 2500 ~ 3600 pcs/hour |
| Recognition Rate | 99% |
| Weighing Accuracy | ±10g |
| Software Interface | HTTP, TCP, 485 |
| Weighing Mode | Dynamic Weighing |

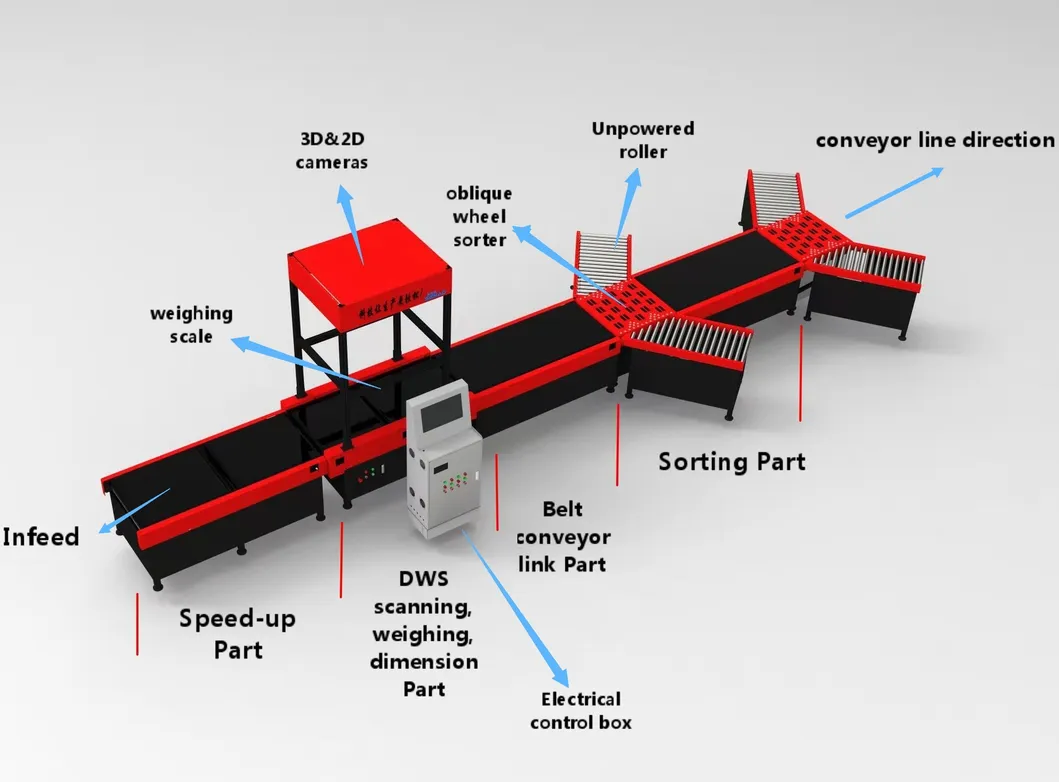

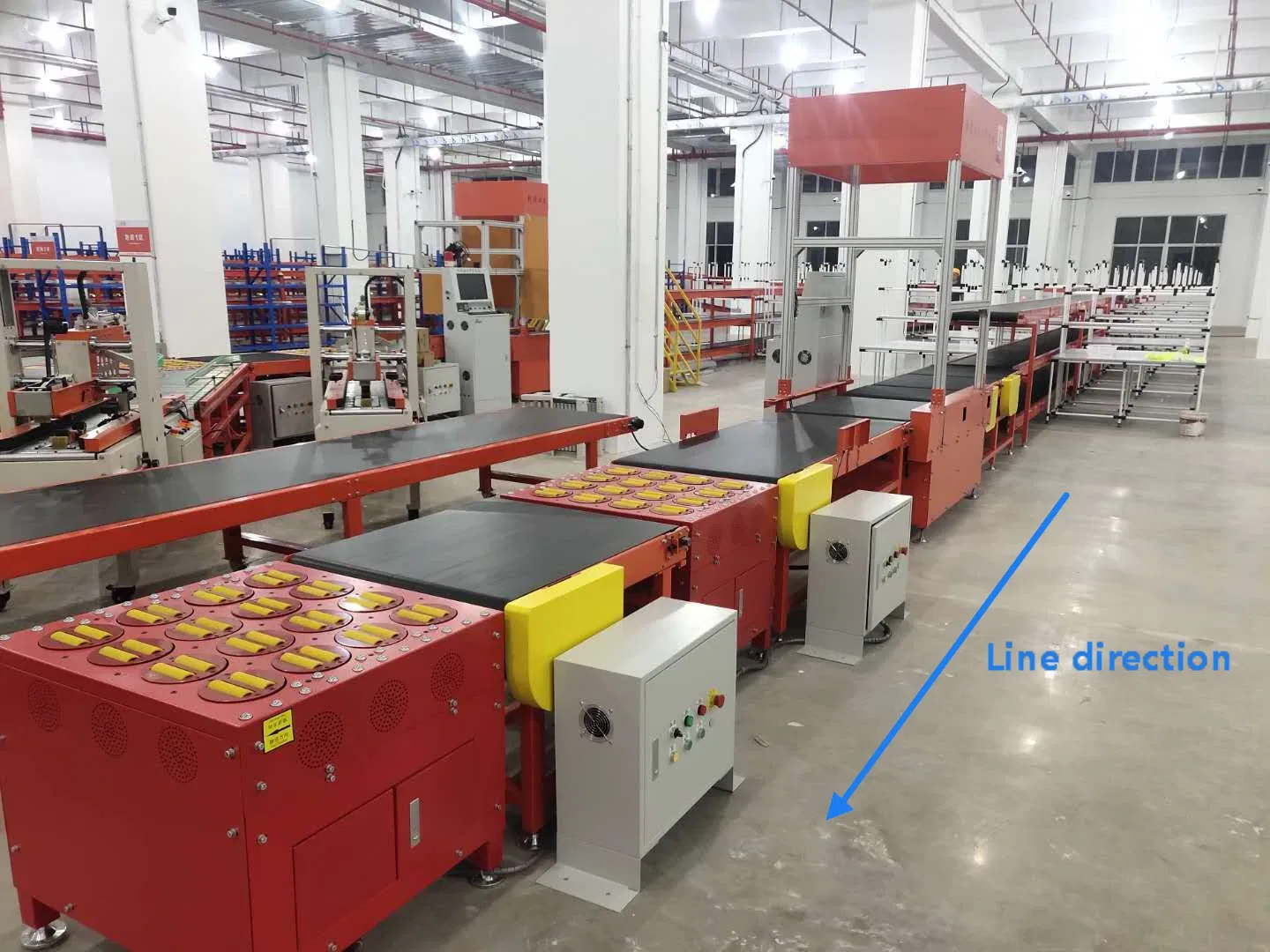

Wheel Sorter
Rolling wheel sorter for 3-direction automatic parcel sorting.

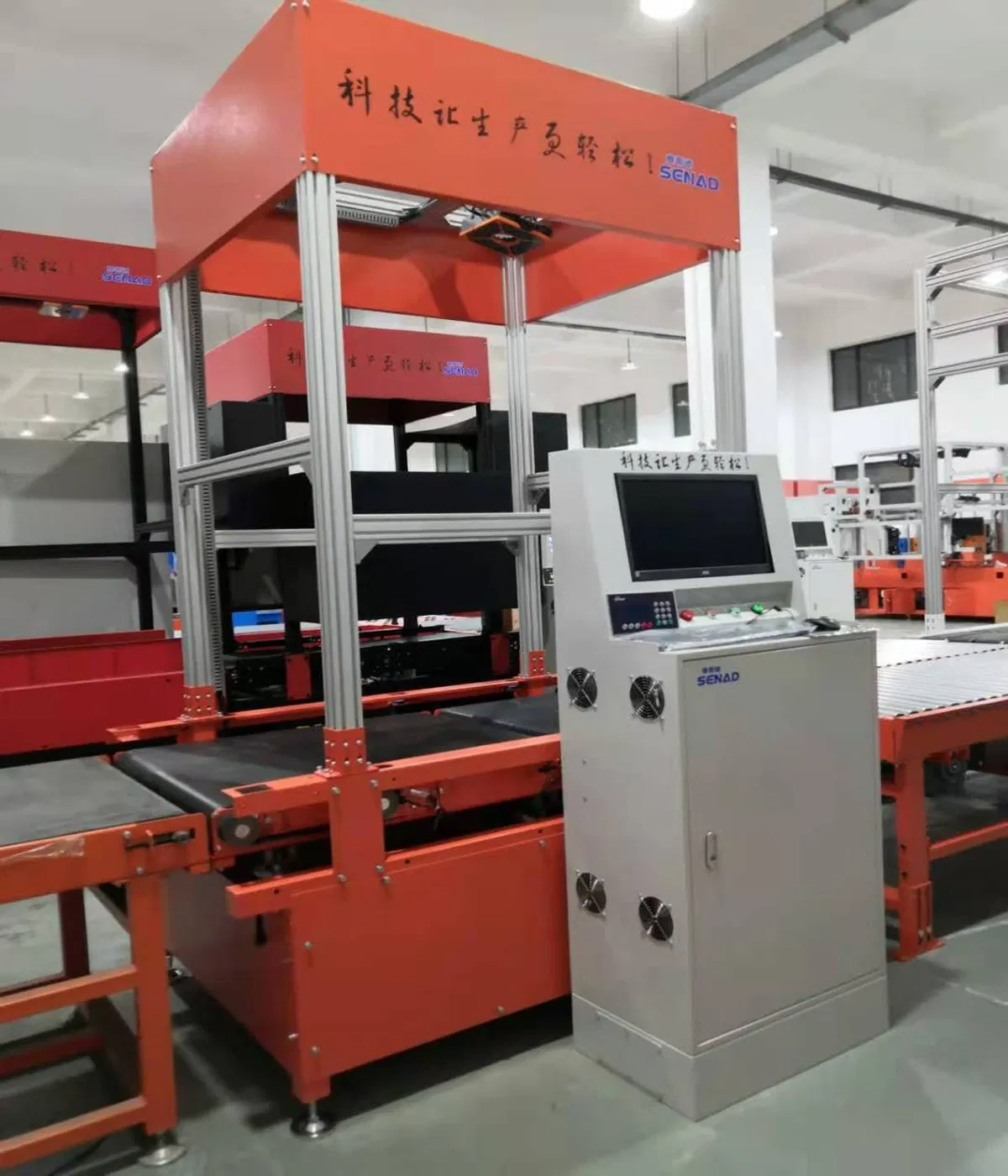

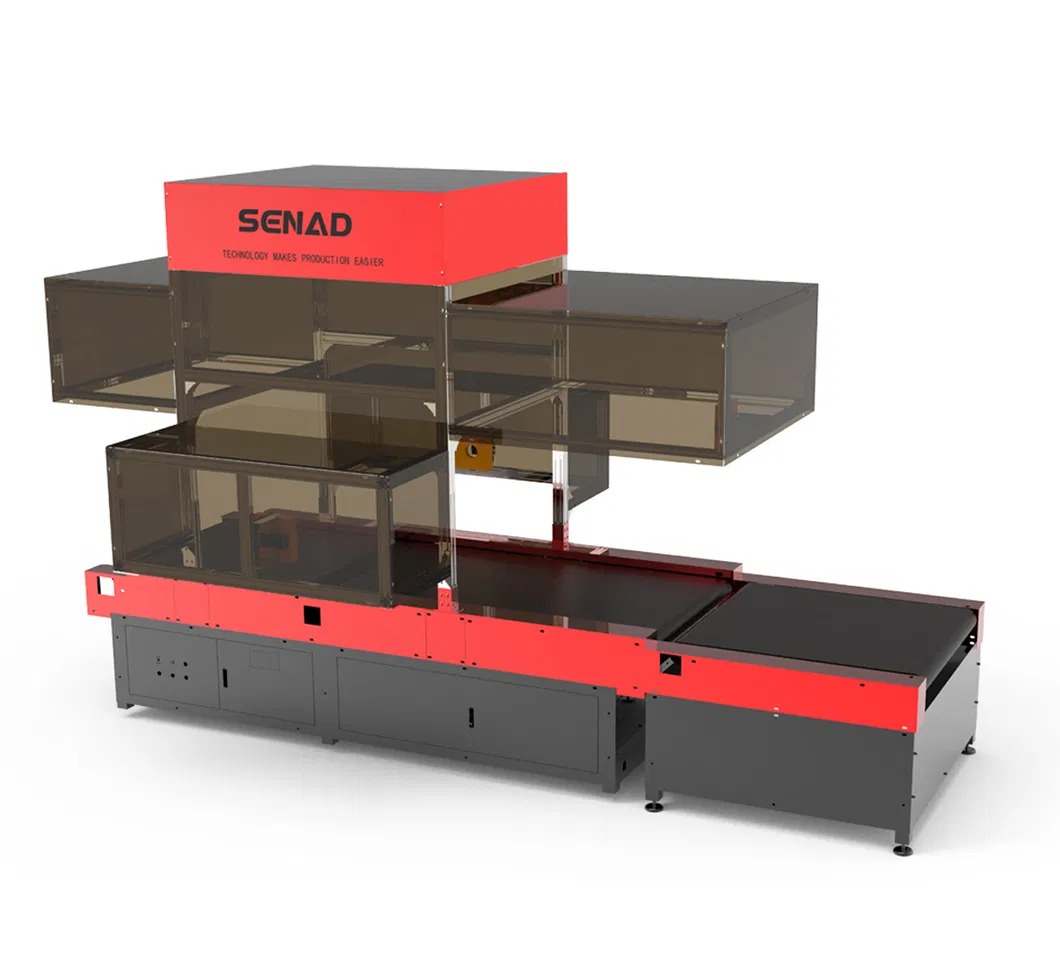

DWS Equipment
Scans codes, weighs, and measures volume with cloud data sync.

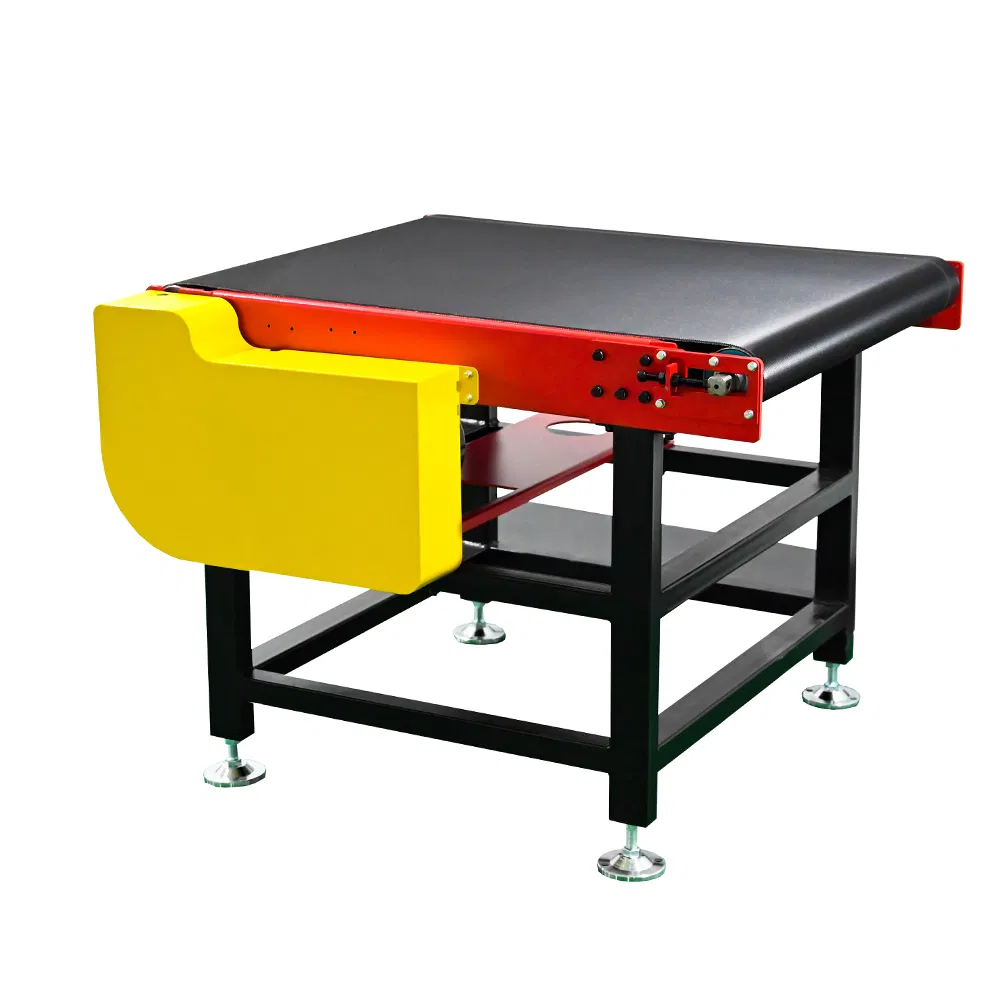

Conveyor Belt
Customizable length and width based on site requirements.
Suitable for: Envelopes, Soft Parcels, Big Packages, and Various Boxes.
Founded in 2012, we are a high-tech enterprise focused on research, development, and production of high-end warehouse automation equipment. We provide standard and customizable solutions for barcode scanning, weighing, volume measurement, and integrated sorting systems. By utilizing deep learning algorithms and robot motion control, we aim to replace manual labor with efficient robotic systems, helping companies reduce errors and increase productivity.
