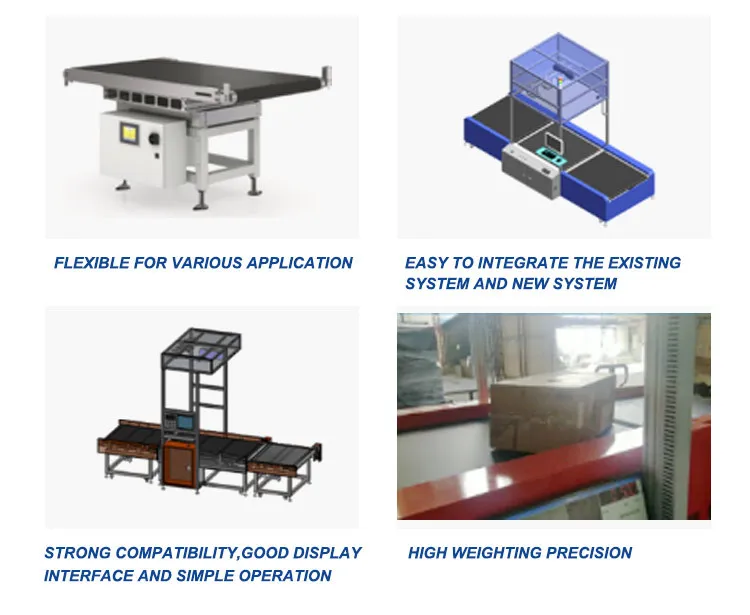

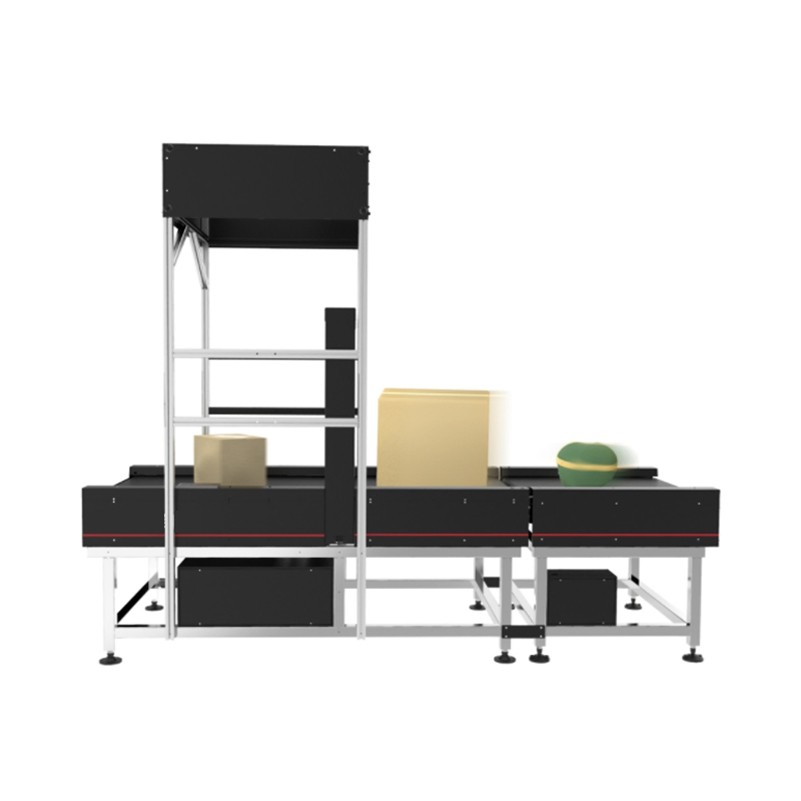

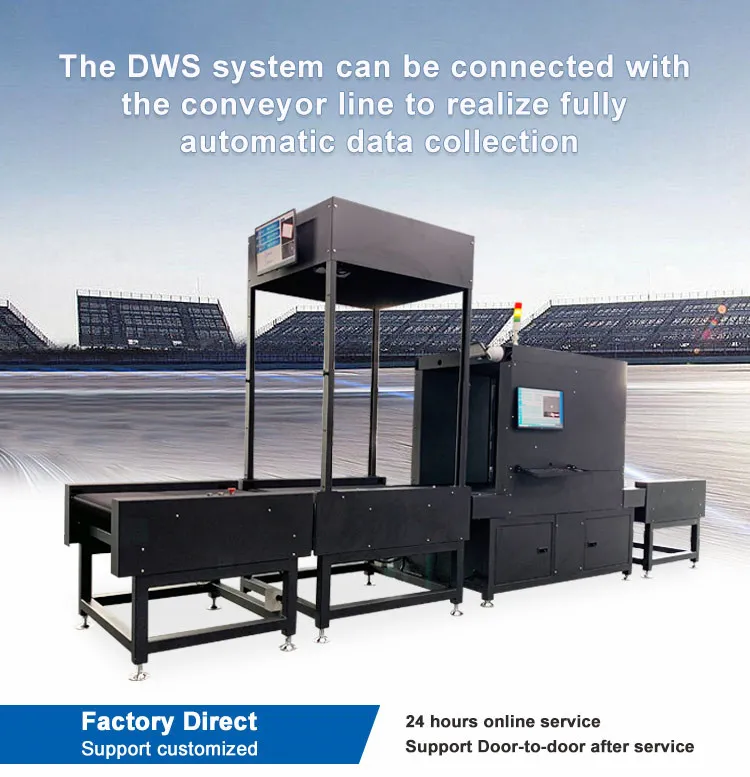

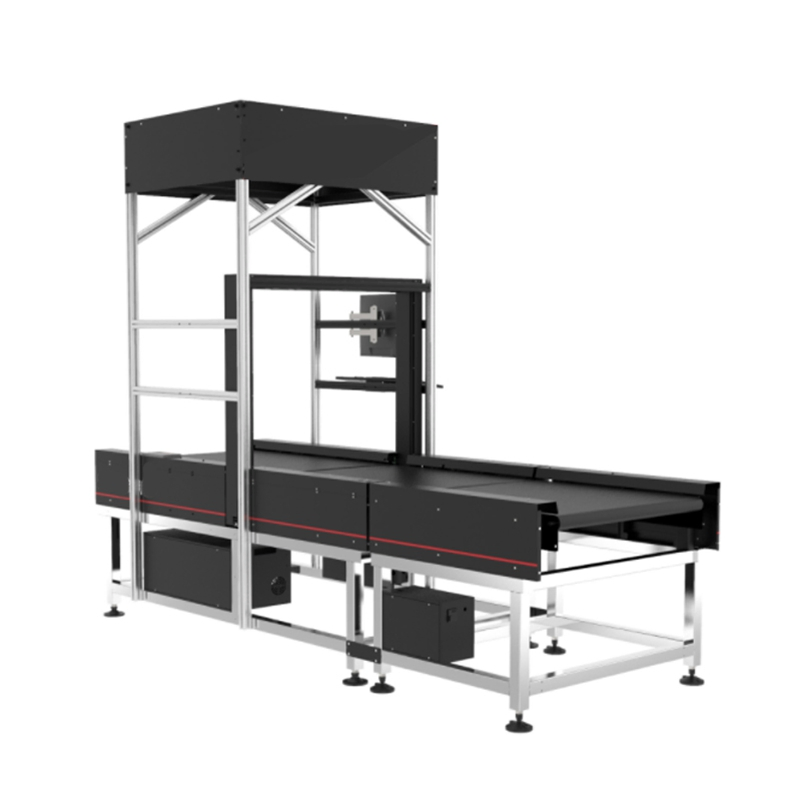

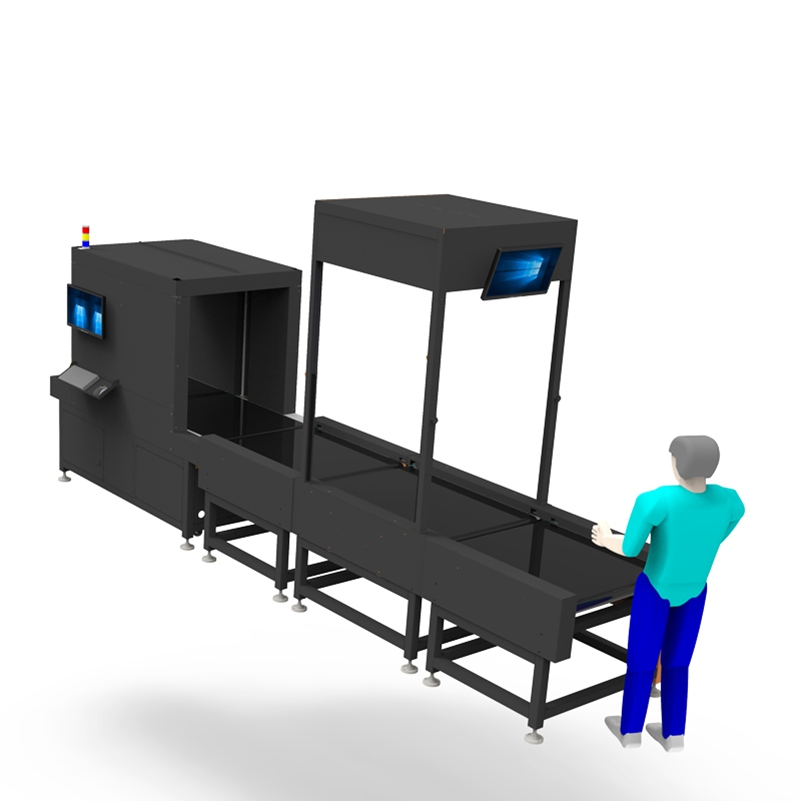

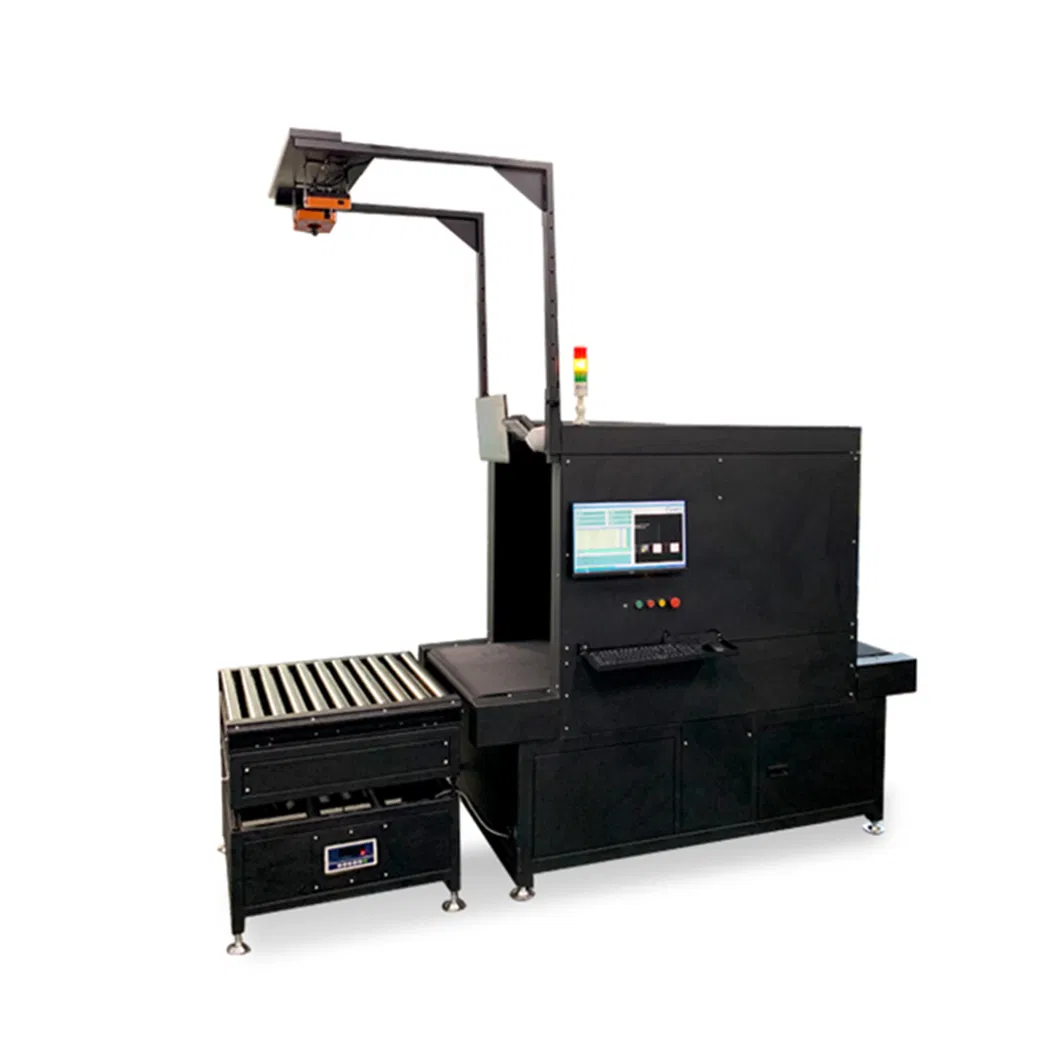

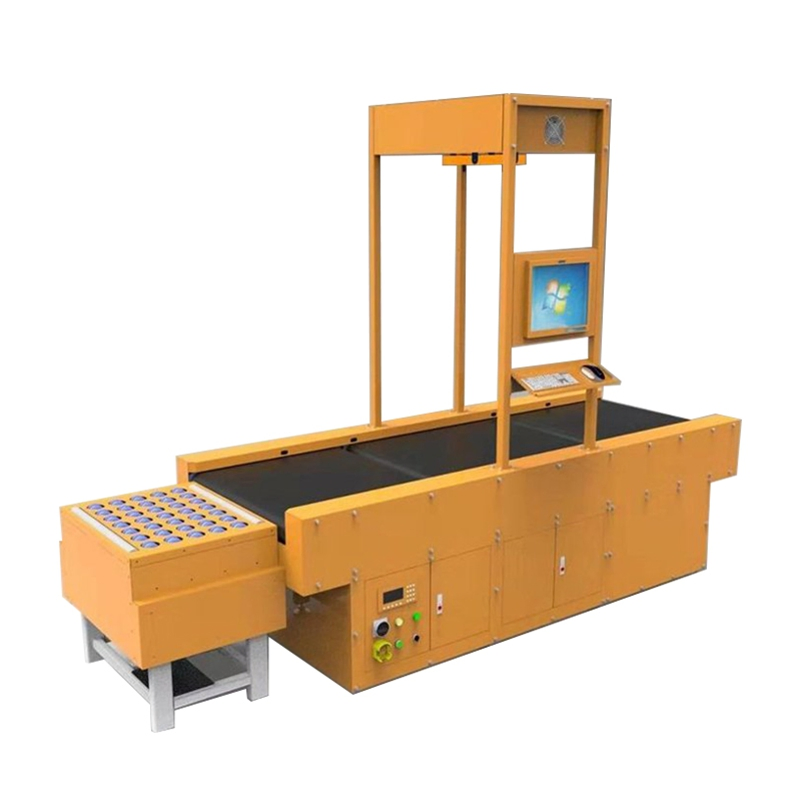

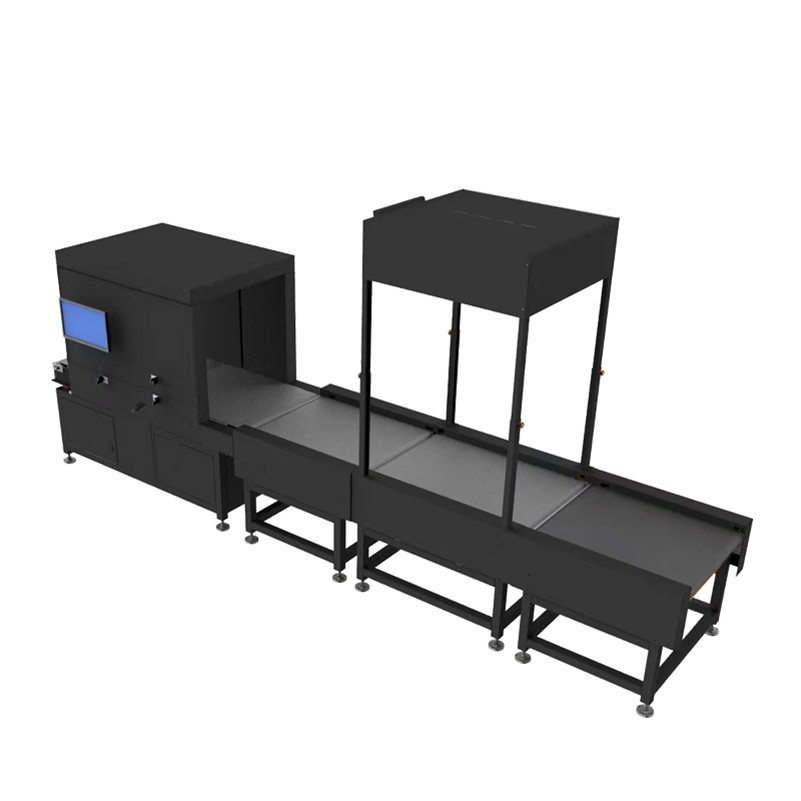

The Dimension Weight Scanning System (DWS) is an integrated measurement solution featuring a modular design for simple configuration and maintenance. It assists enterprises in consolidating five core functions: high-speed weighing, volume measurement, barcode recognition, data input, and camera archiving. This system is primarily applied in logistics distribution and warehousing hubs.
The system captures the dimensions and weight of any shaped parcel while storing high-quality product images. With an integrated barcode scanner and a user-friendly touchscreen interface, it streamlines parcel data capture without requiring external laptops.
| Device Name | High-speed scanning code weighing and volume measuring machine |

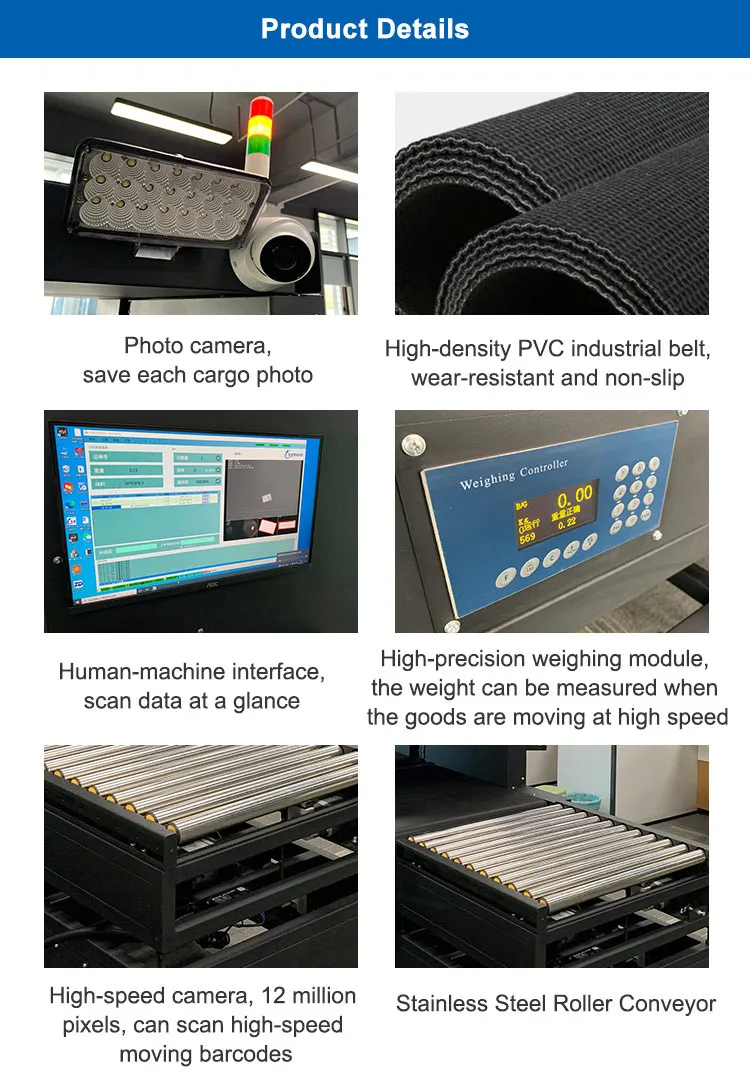

| Hardware | HD camera + handheld scanner; Intelligent dynamic scale; Infrared volume measurement line; Industrial computer + LCD; PLC Electronic Control. |
| Software | Image forensics and photography software; DWS Supporting Software. |
| Efficiency | 1200-2400 pieces/hour |
| Bar Code Rate | ≥99.5% |
| Weighing Range | 0.1 - 50kg (Accuracy: ±20g) |
| Dimension Range | Min: 100*10*10mm | Max: 1000*800*800mm |
| Alarm System | Intercepts unread labels or damaged sheets for manual handling. |
We work with experienced shipping forwarders to arrange shipments via express, air, or sea. Every course of goods is tracked all the way to ensure timely arrival in good condition.
