Overview & Basic Info
Code Identify Accuracy
99.9%
Rating Efficiency
1500--2000 PS/Hour
Scanning Max. Size
500*500*500mm
Scanning MIN. Size
50*50*5mm

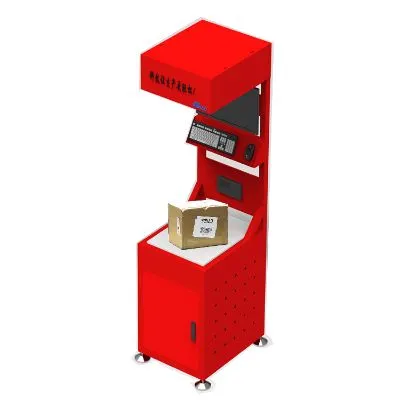

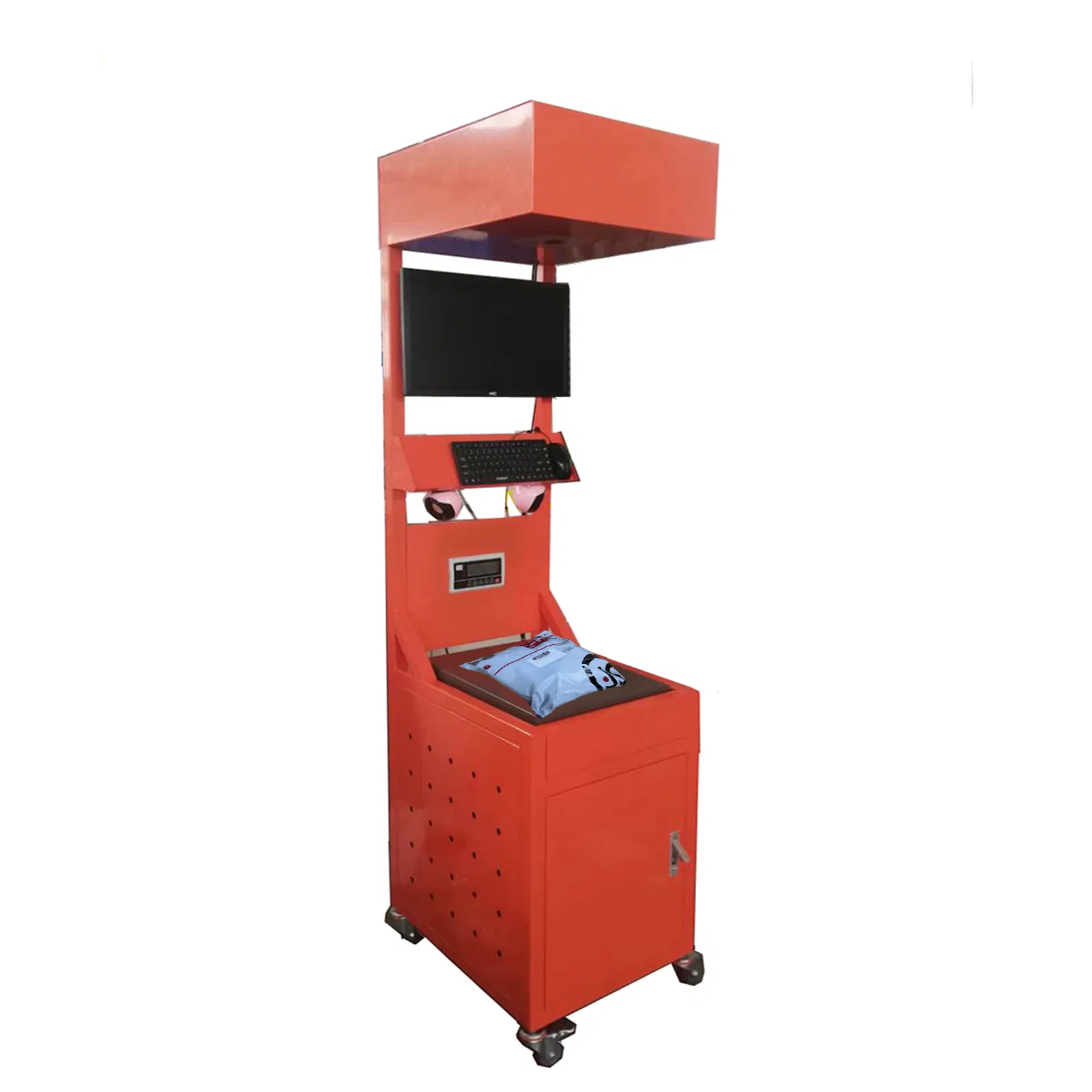

Product Description
Small parcel dws is mainly used to measure dimension weight and scan barcode of parcle in logistics, e-commerce and other relevant industry. When a package is put on it manually, the data of weight, dimension and code will be collected, saved in local disk and uploaded to customers' management system. These data can also be exported as excel file. Parcels can be sorted to two different destinations.
🚀
- Economical
- Flexible and customizable
- Easy to operate
- Data traceable
- High accuracy

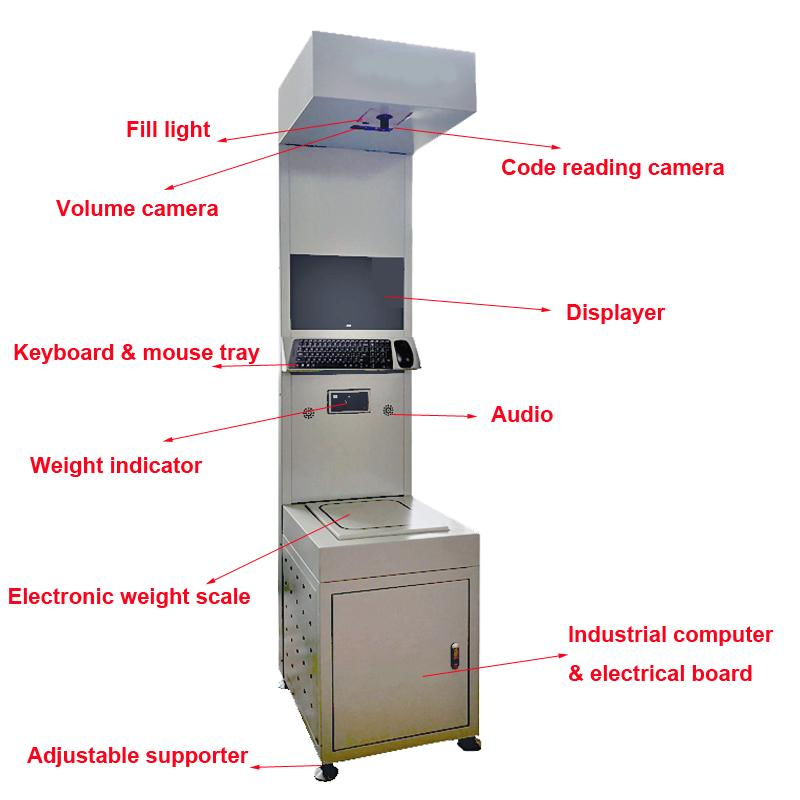

Technical Parameters
| System Configuration |
| Industrial computer | Intel I5 |
| Display | 19.5 inches LCD |
| Camera | 20 million pixel Industrial camera |
| Keyboard/mouse | Logitech |
| Load cell | 100kg |
| Index |
Parameter |
| Weighing range | 30g~20kg |
| Dimensioning range | 50*50*50 ~ 500*500*500mm |
| Capacity | 1000~1500 pcs/hour |
| Recognition rate | 99% |
| Dimensioning accuracy | ±5mm |
| Weighing accuracy | ±20g |
| Software Interface | HTTP, TCP, 485 |
| Remote diagnosis | Supported |
Product Highlights
📷

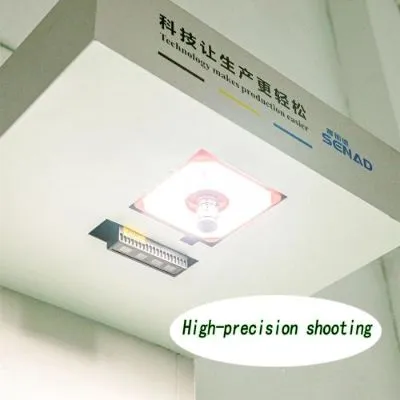

High-precision Shooting
Industrial high-precision shooting cameras can accurately scan and record item information, realize storage records, and significantly improve recognition capabilities.
🖥️

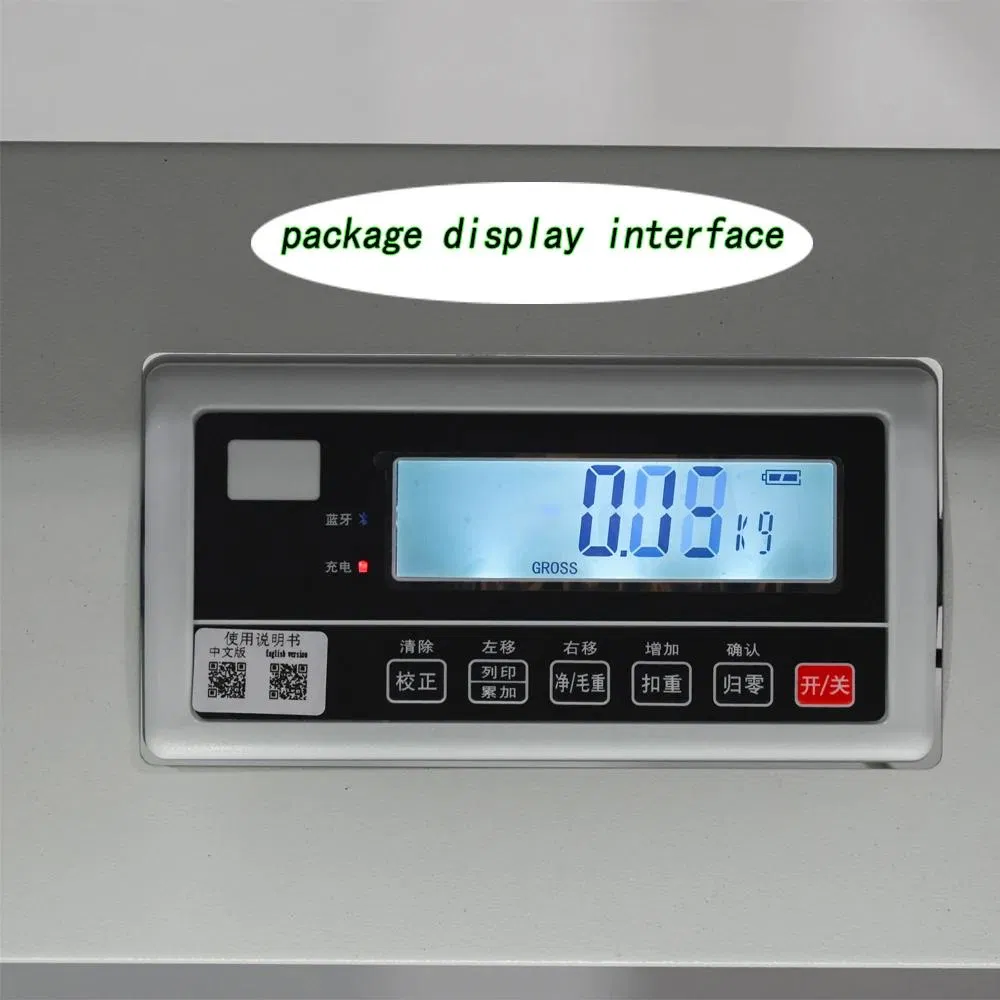

Information Display Interface
Clearly displays the detailed information of each package, including weight and size, enabling automatic sorting operations to improve work efficiency.
📊

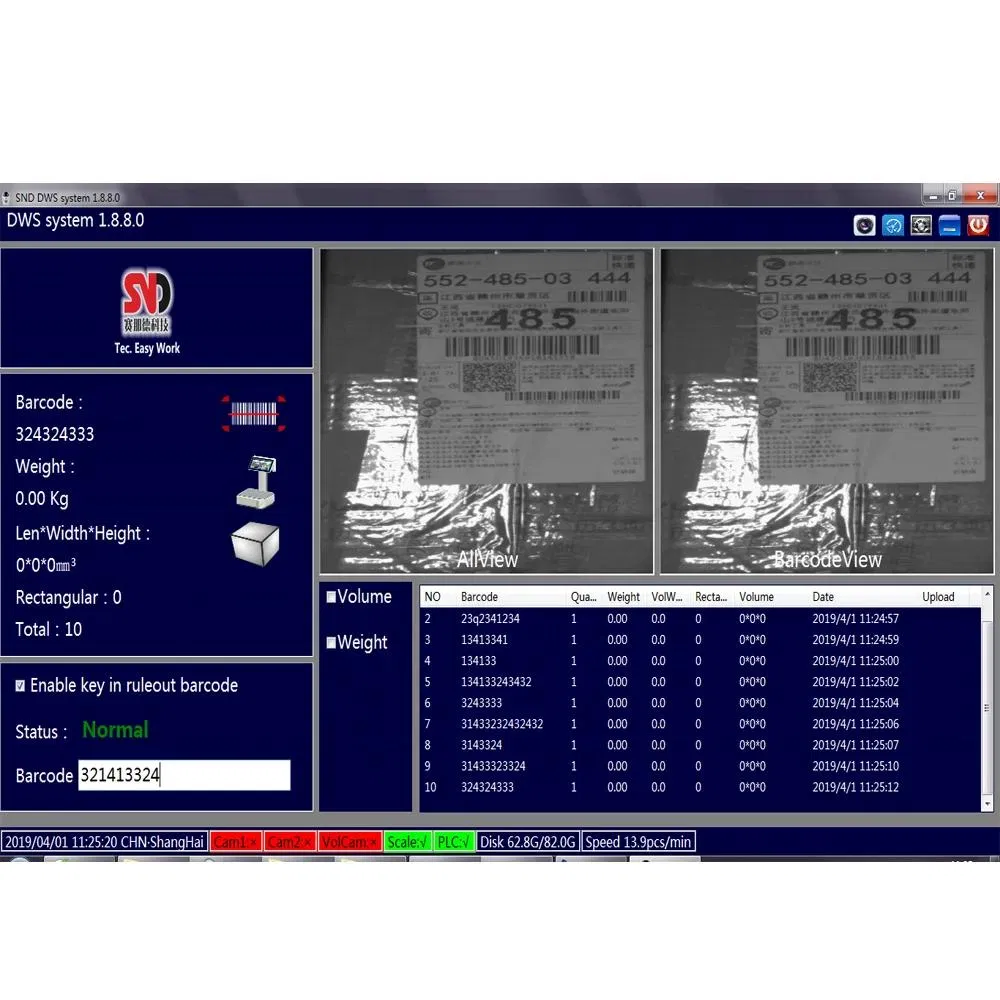

Clear Record Interface
The operation interface displays size, weight, and barcode info. Languages can be customized, docking with customer systems for automatic data output.

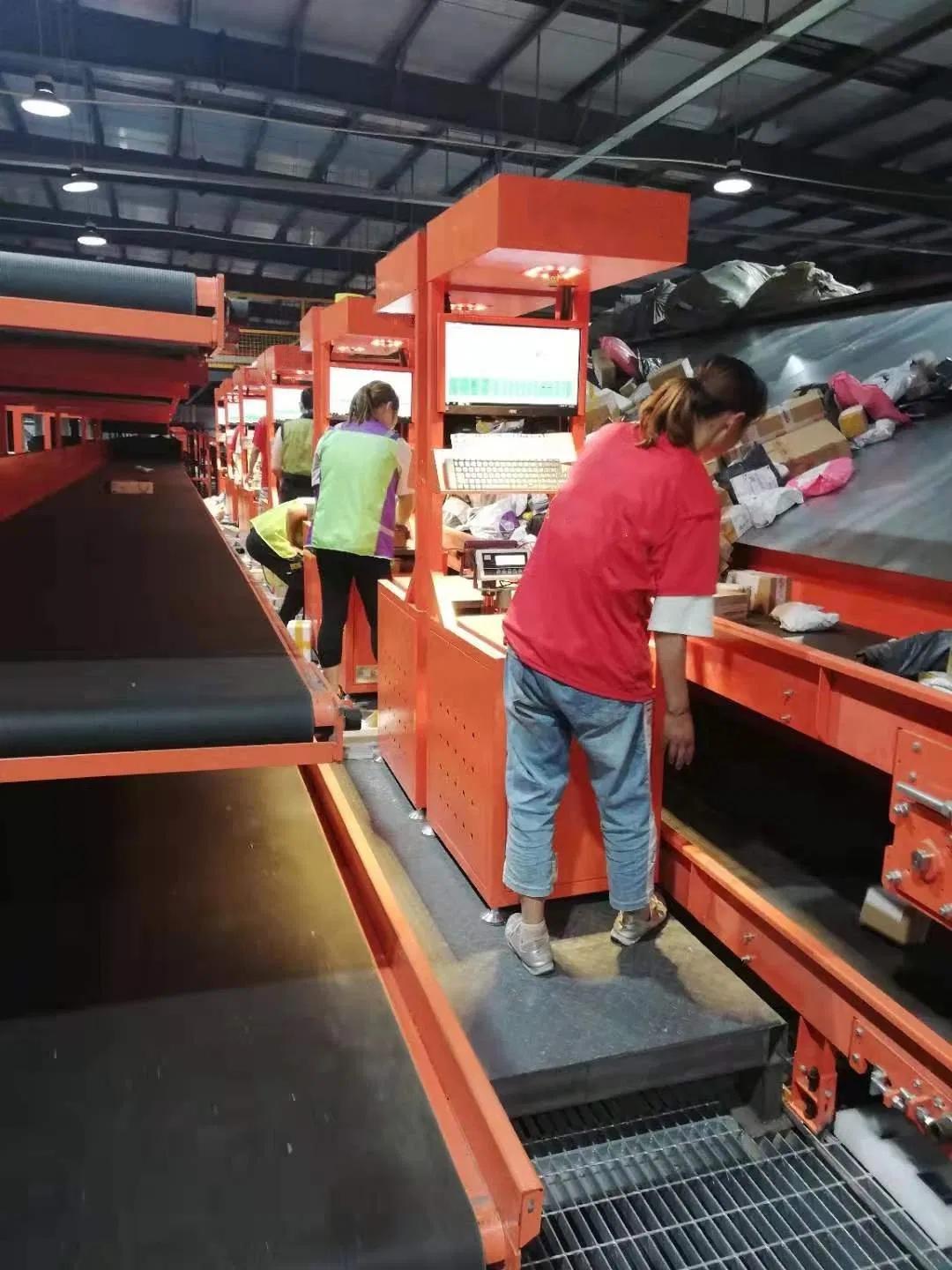

Application Scenarios
Envelopes
Soft Parcels
Big Packages

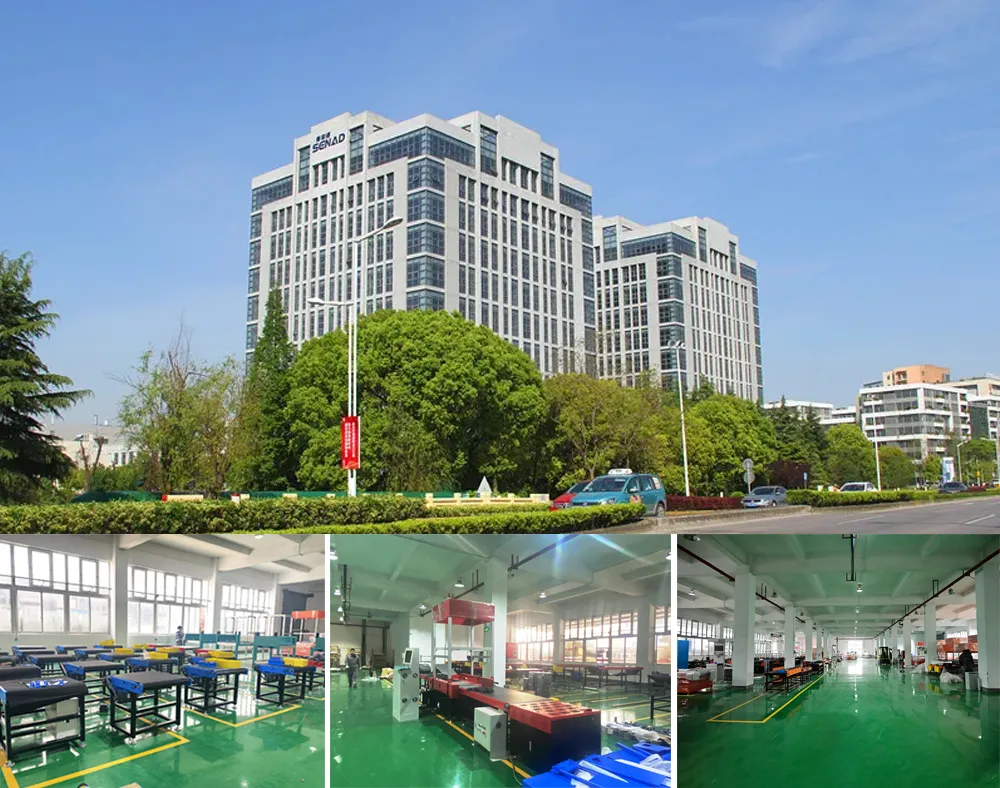

Enterprise Strength
As a national high-tech enterprise, we focus on machine vision technology through deep learning, image processing, and pattern recognition algorithms. In the field of smart logistics, we provide suitable application scenarios for machine vision to reduce costs and increase efficiency, empowering the global smart logistics and manufacturing industries.
Certifications
Service & Partners
🛠️ After-Sales Support:
- Assemble and debug before delivery
- 24-hour response for problem resolution
- 1-year free repair service (non-human damage)
- Overall warehousing solutions provided
Frequently Asked Questions
Are you a manufacturer or a trade company?
We are a specialized manufacturing company with our own professional R&D and software development teams.
What are your core advantages?
As a national high-tech enterprise, we possess complete and efficient R&D capabilities, supporting both OEM and ODM services, including device color and software customization.
What kind of pre-sales and after-sales services do you provide?
Pre-sales include customized planning and design. After-sales features 24/7 online support, remote installation guidance, and seamless docking with customer systems.
How long is the product warranty period?
We provide a one-year warranty on the equipment, excluding consumable spare parts.
What are the supported payment terms?
Our standard terms include T/T, L/C, D/P, D/A, Western Union, and Money Gram. Other options can be discussed upon request.
Can the software be integrated with our current system?
Yes, our system supports standard interfaces such as HTTP, TCP, and 485 for seamless data docking with your management software.
