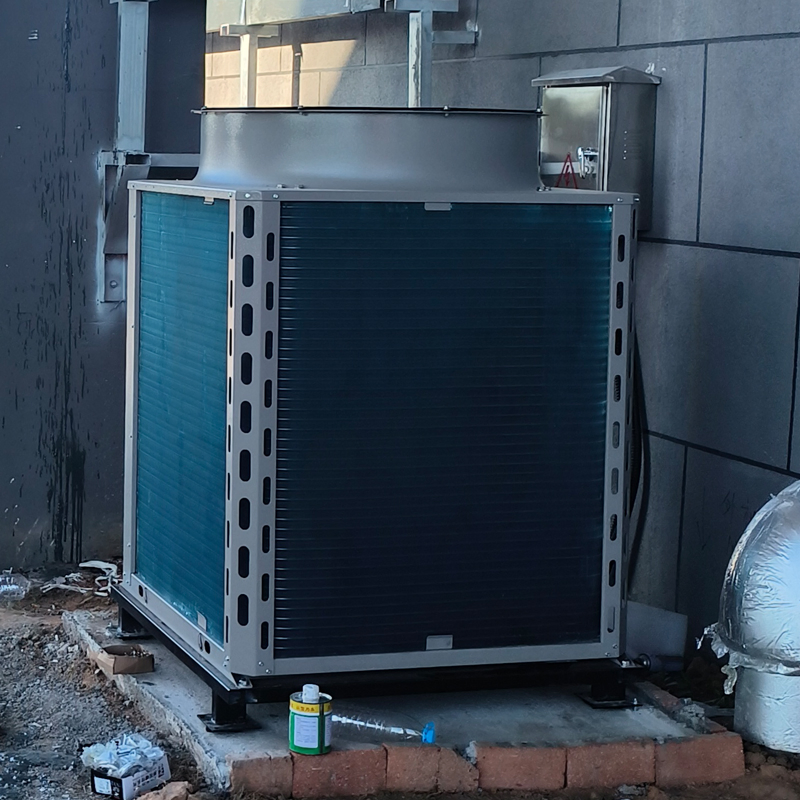

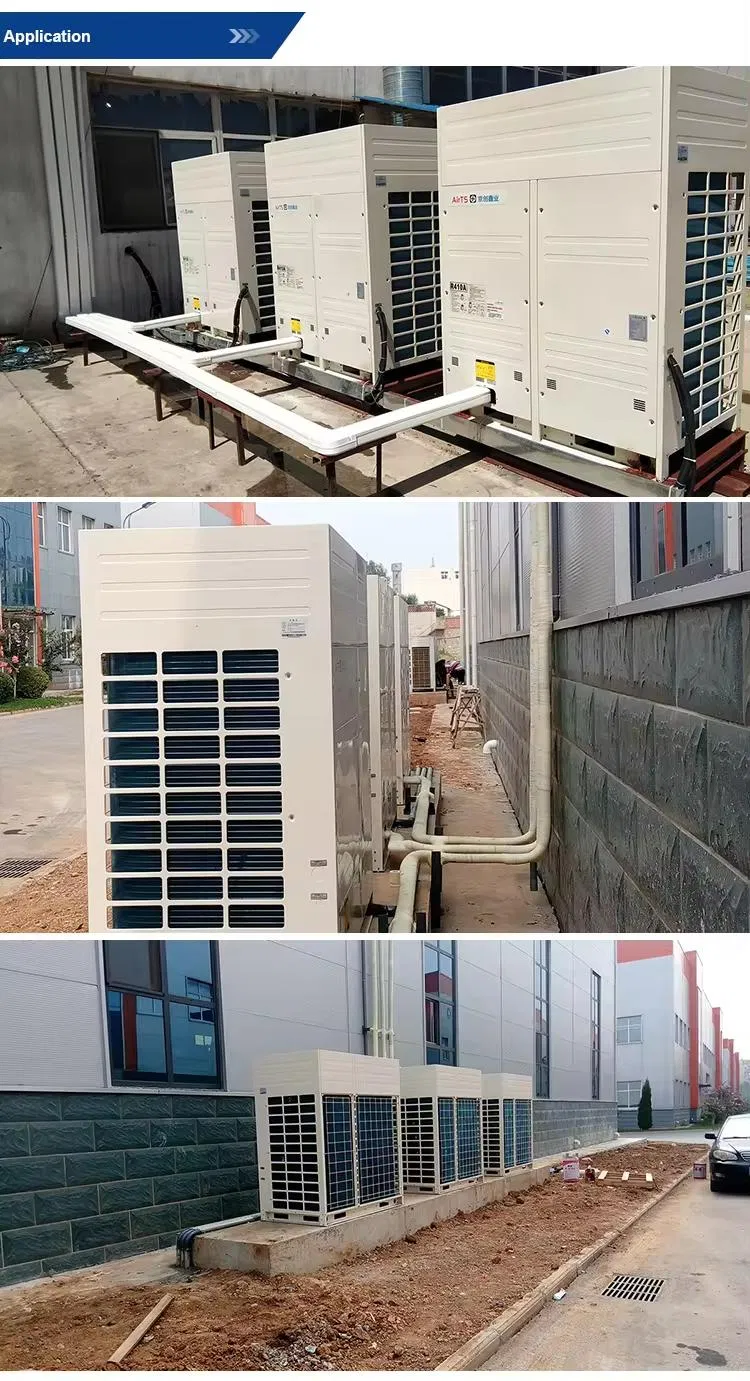

The VRF air conditioners, also known as "one-to-many," is a type of system where one outdoor unit is connected to several indoor units. Each indoor unit can operate independently or be controlled together. The system has an outdoor unit connected by pipes to indoor units that have components like outdoor heat exchangers, compressors, and other parts.
The system's working principle is simple: the indoor temperature sensor controls the valve on the indoor unit's cooling pipe. By adjusting the pressure, the system can control the outdoor unit's compressor speed or change its operating mode to adjust the cooling capacity according to the load.

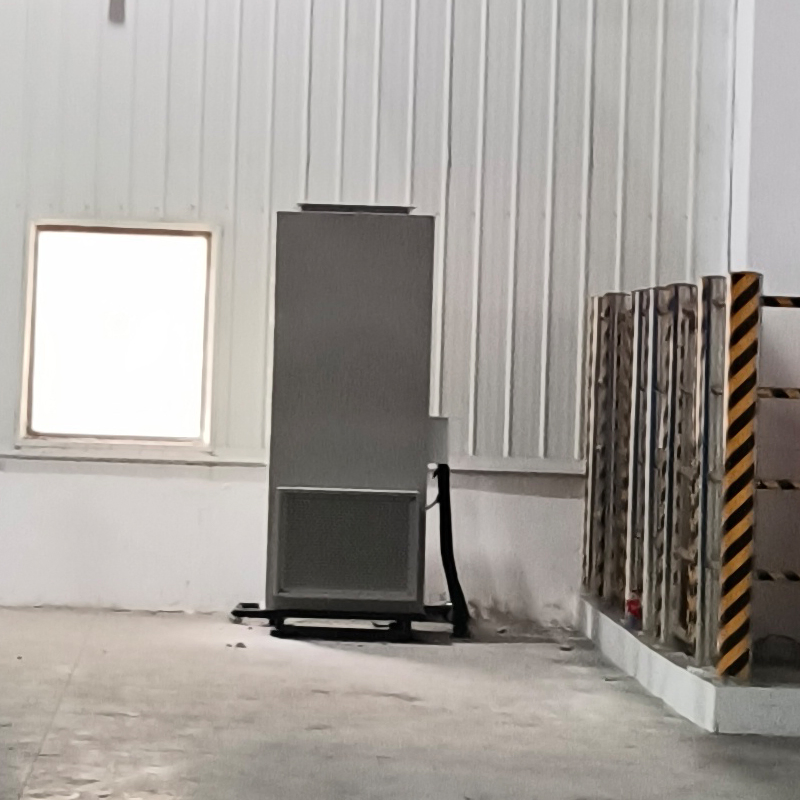

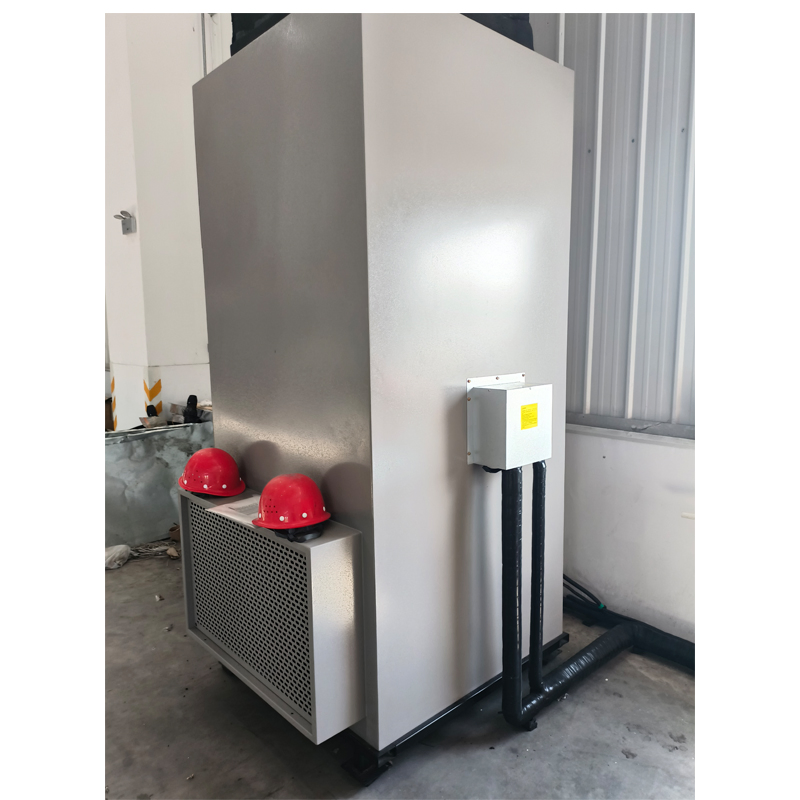

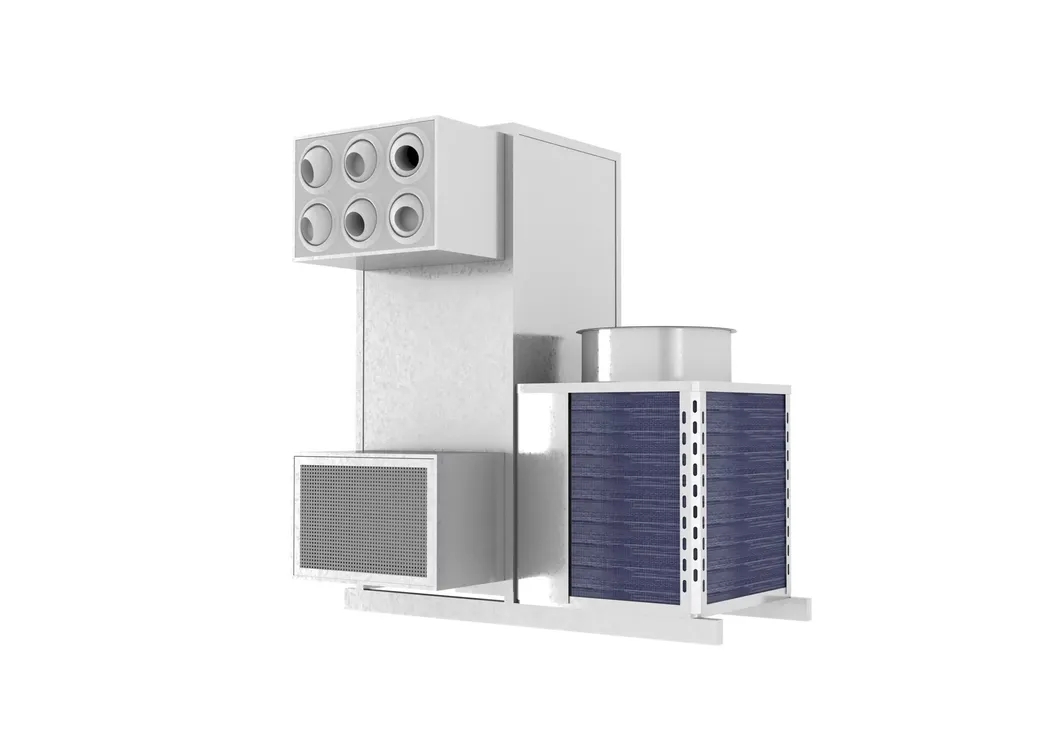

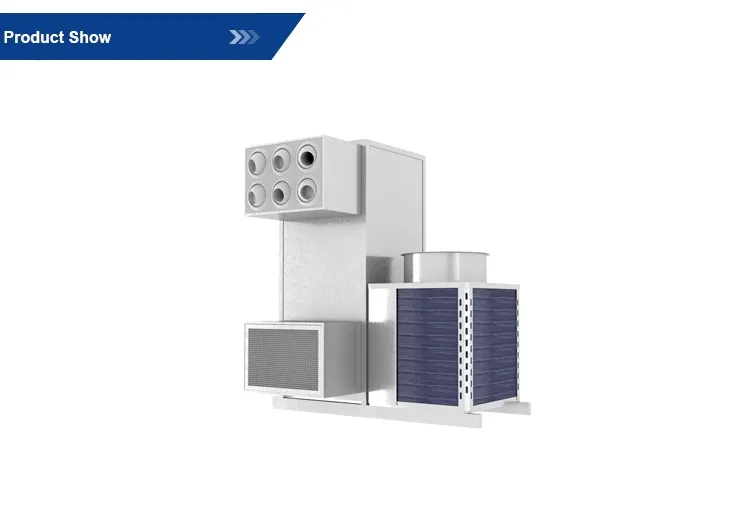

| Direct Expansion Side Mounted Jet-flow Air Conditioning Unit | ||
|---|---|---|
| Model | - | AirTS-C72 |
| Standard circulating air volume | m3/h | 12000 |
| Nominal cooling capacity | kW | 72 |
| Nominal heating capacity | kW | 68 |
| Nominal cooling input power | kW | 21.00 |
| Nominal heating input power | kW | 19.00 |
| Power supply | - | 3N~380V 50Hz |
| Refrigerant | - | R410A |
| Lateral air supply distance | m | >45 |
| Control mode | - | VAV stepless regulation |

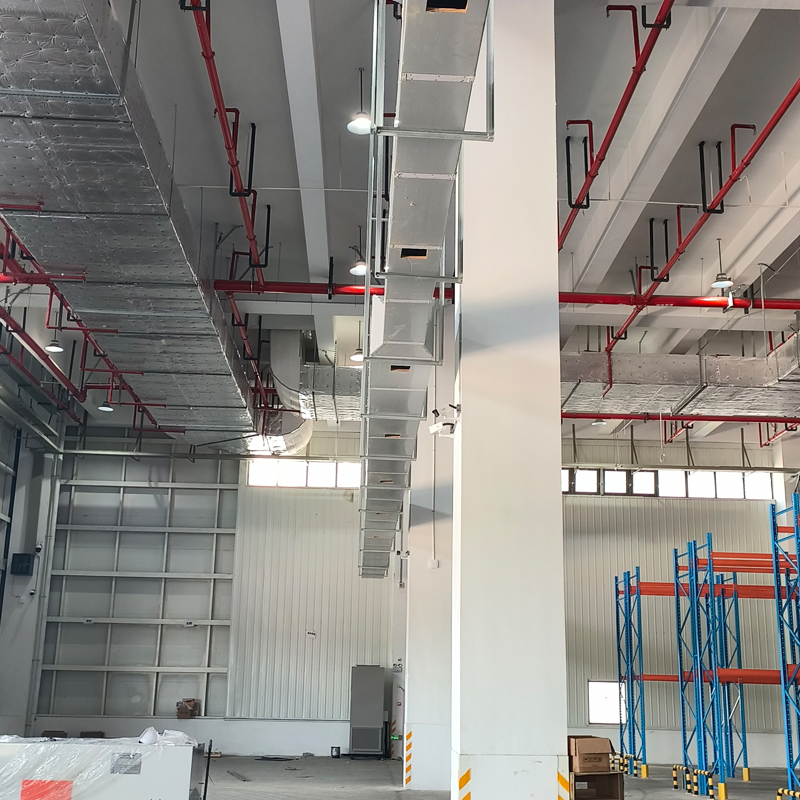

Our solutions effectively resolve diverse requirements such as heating, cooling, ventilation, humidification, dehumidification, and dust removal in buildings ranging from 4 to 30 meters in height.
