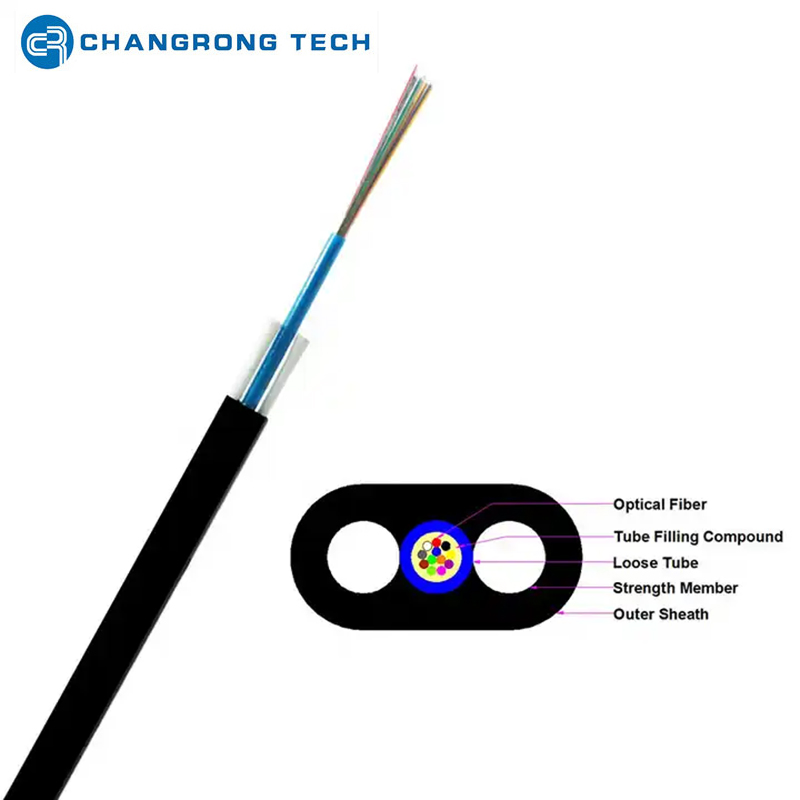

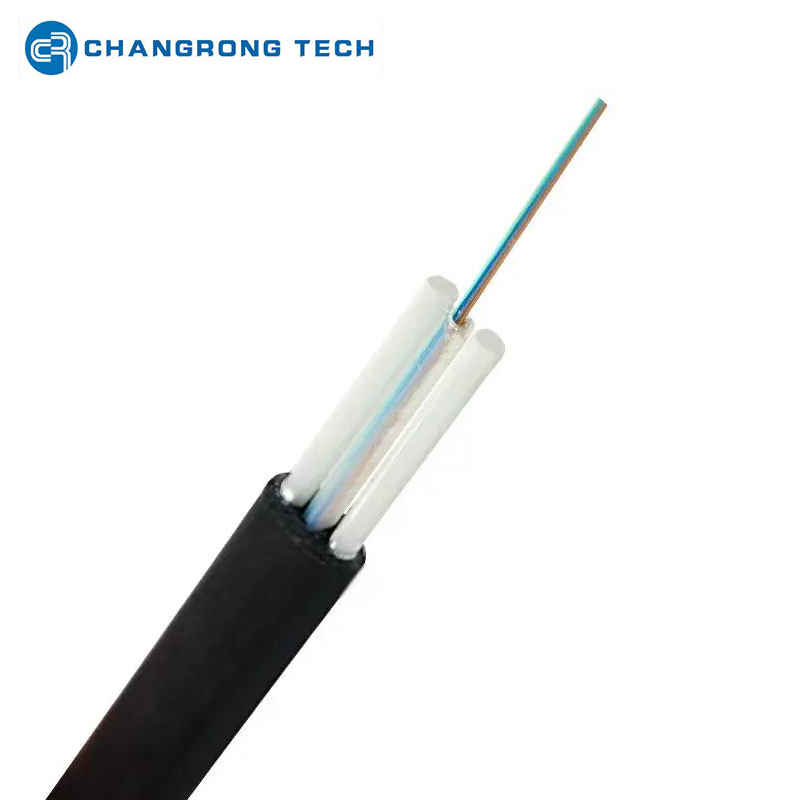

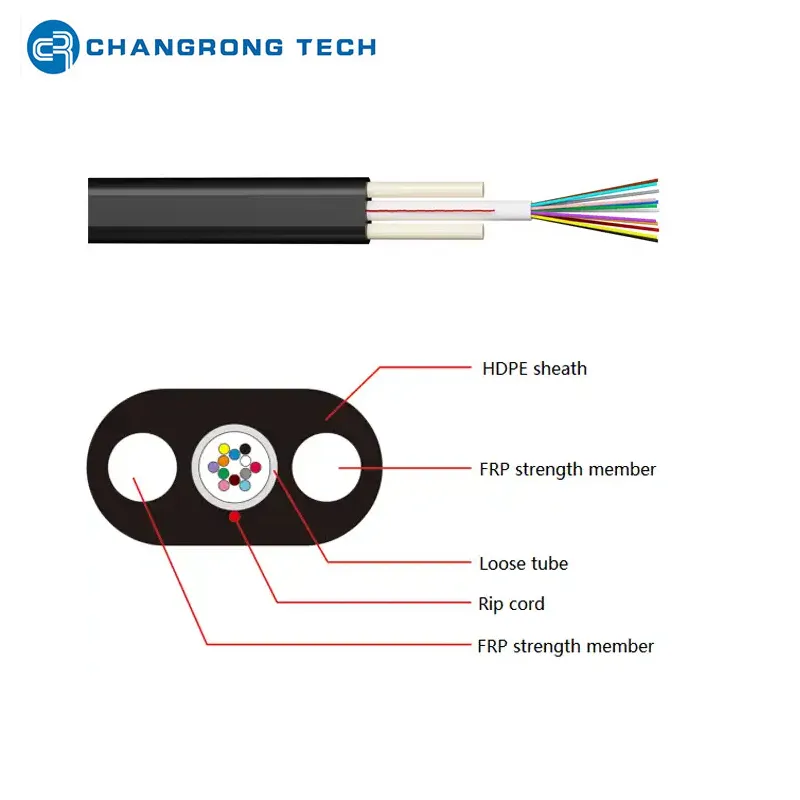

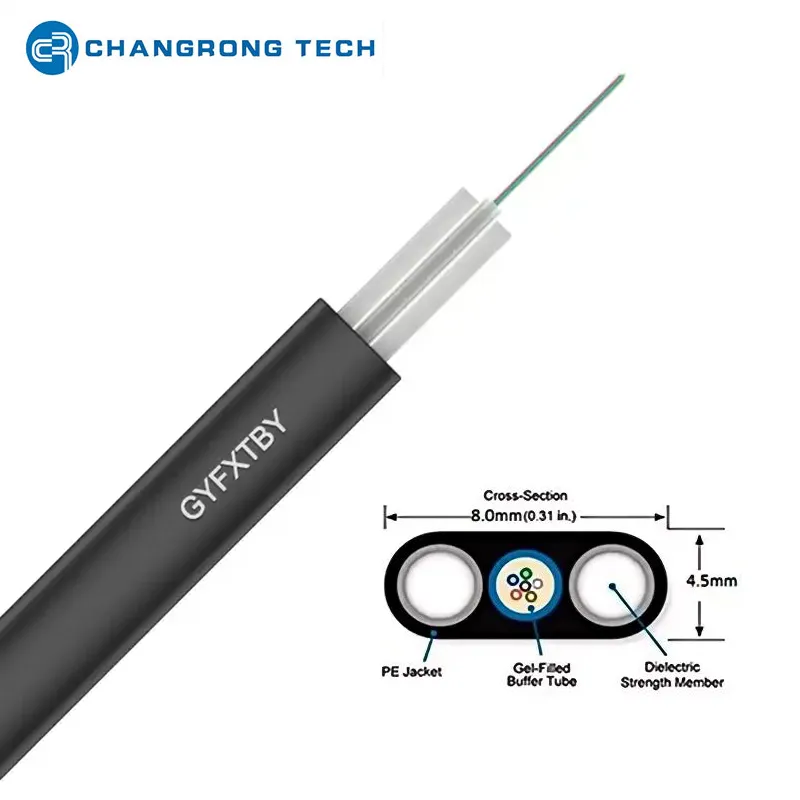

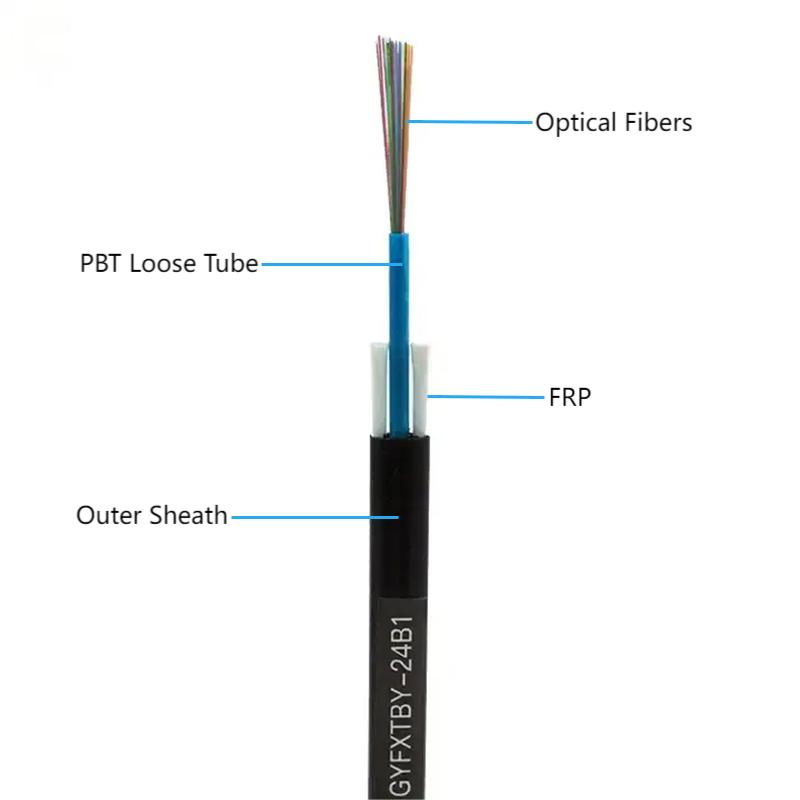

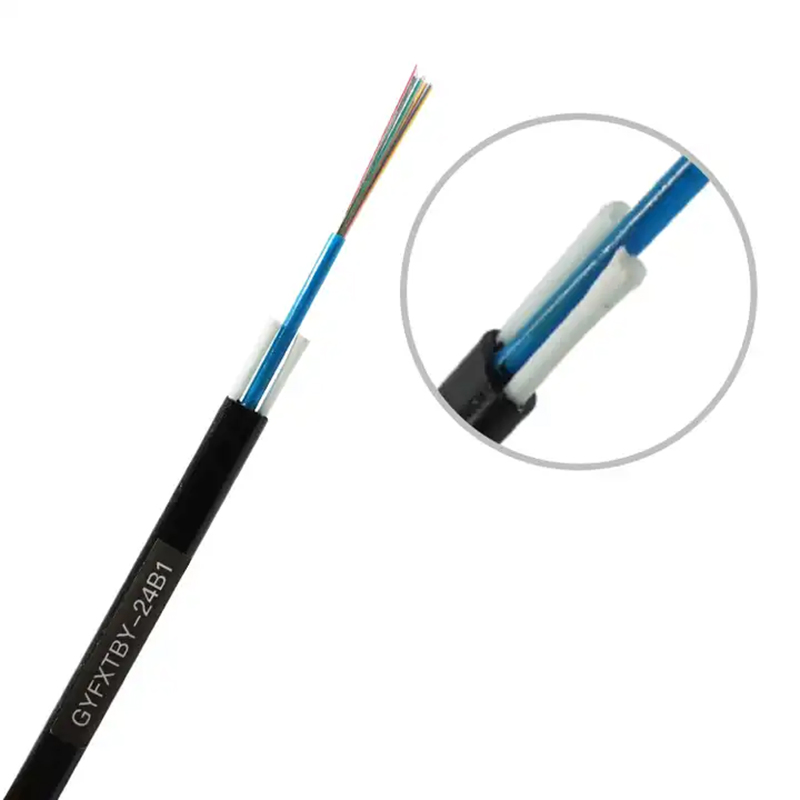

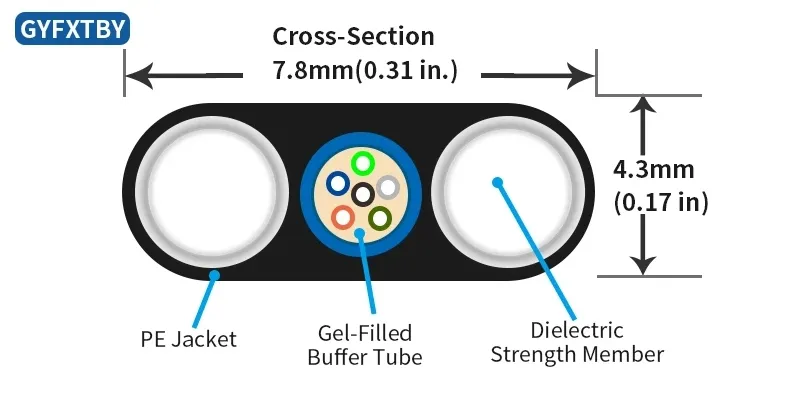

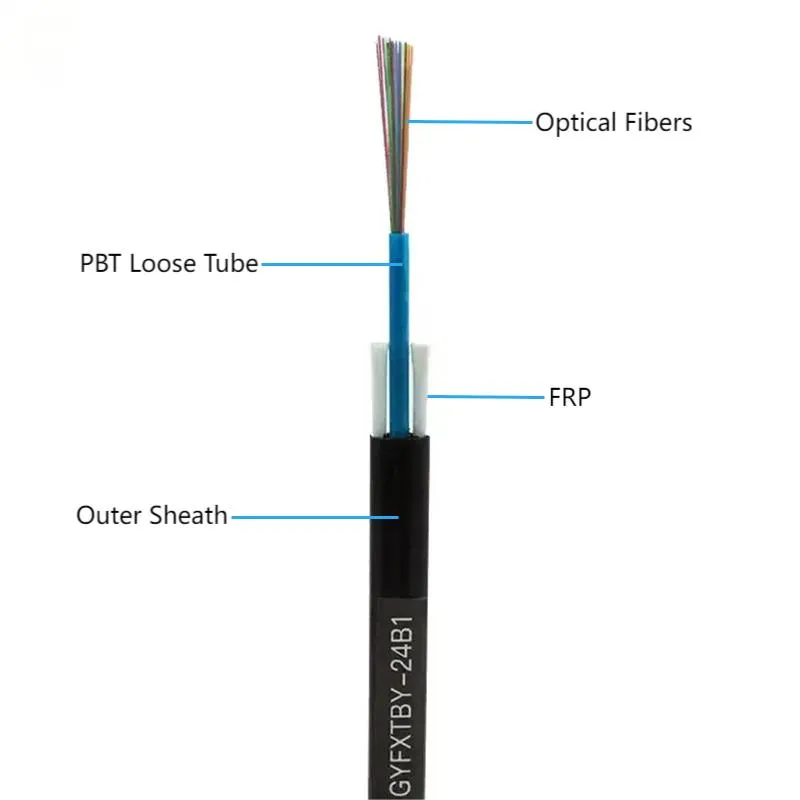

Designed for quick installation and ease in handling, Flat Drop cable serves as the last link for the FTTx networks of today. The design is Uni-Loose Tube containing up to 24 fibers. Two embedded FRP members provide the mechanical properties of the cable. The finished product acts as a self-supporting aerial solution for those last-mile drops.
| Cable Type | Fiber Count | Diameter (mm) | Weight (kg/km) | Tensile Strength (N) | Crush Resistance (N) | Bending Radius |
|---|---|---|---|---|---|---|
| GYFXTBY | 2-12 | 8.1*4.6 | 45 | 600/1500 | 300/1000 | 10D/20D |
| GYFXTBY | 2-12 | 9.6*5.6 | 50 | 600/1500 | 300/1000 | 10D/20D |
| Item | Unit | Specification (G652D) |
|---|---|---|
| MFD (1310nm) | μm | 9.2±0.4 |
| MFD (1550nm) | μm | 10.4±0.5 |
| Cladding diameter | μm | 125.0±1 |
| Attenuation (1310nm) | db/km | ≤0.36 |
| Attenuation (1550nm) | db/km | ≤0.22 |

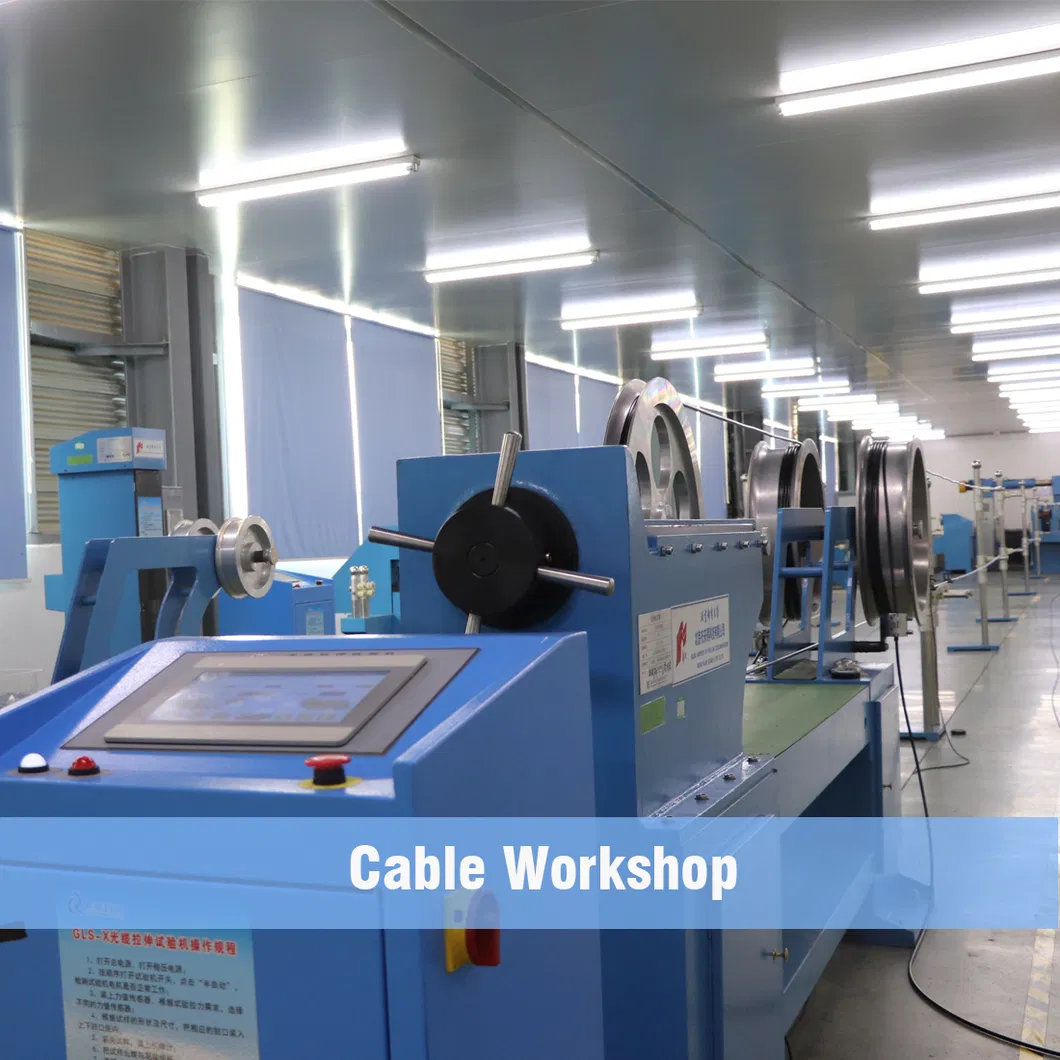

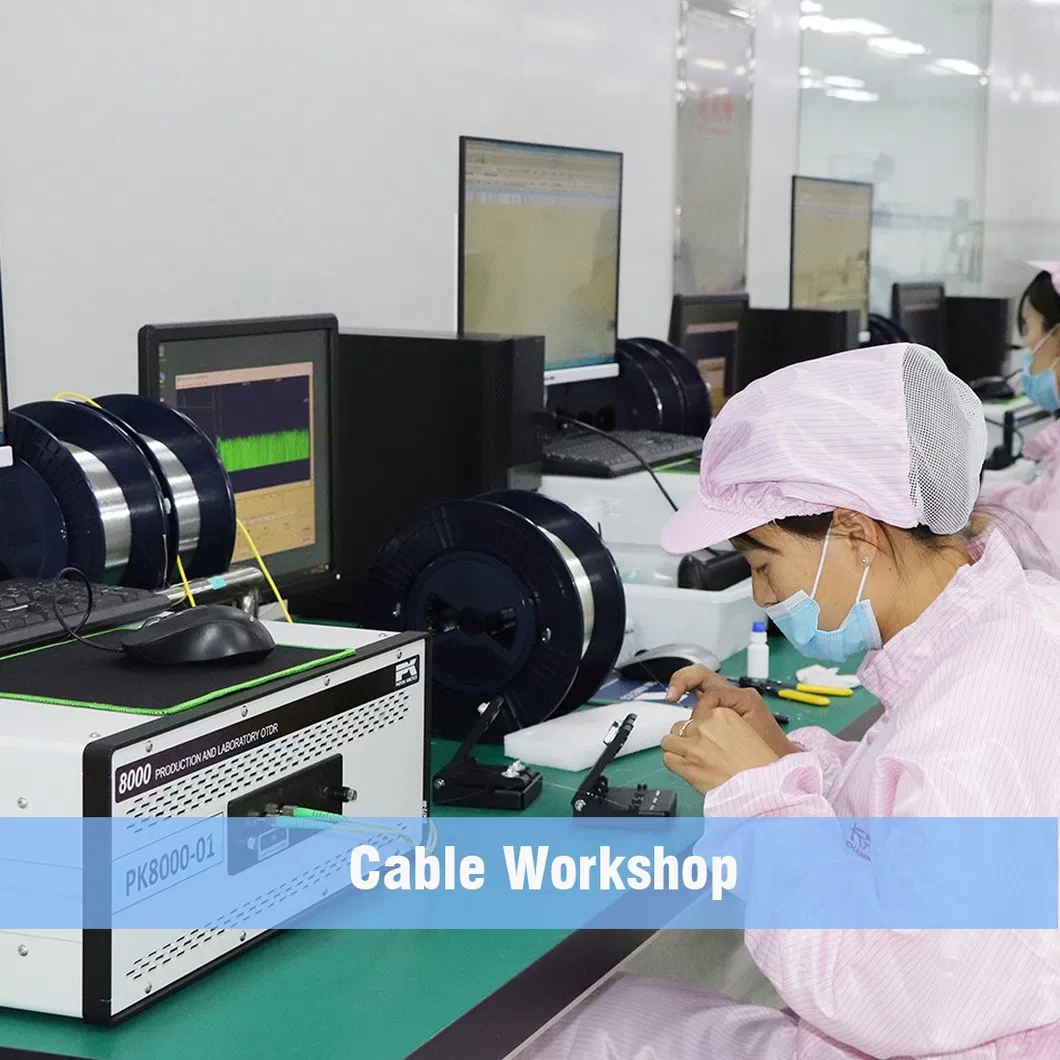

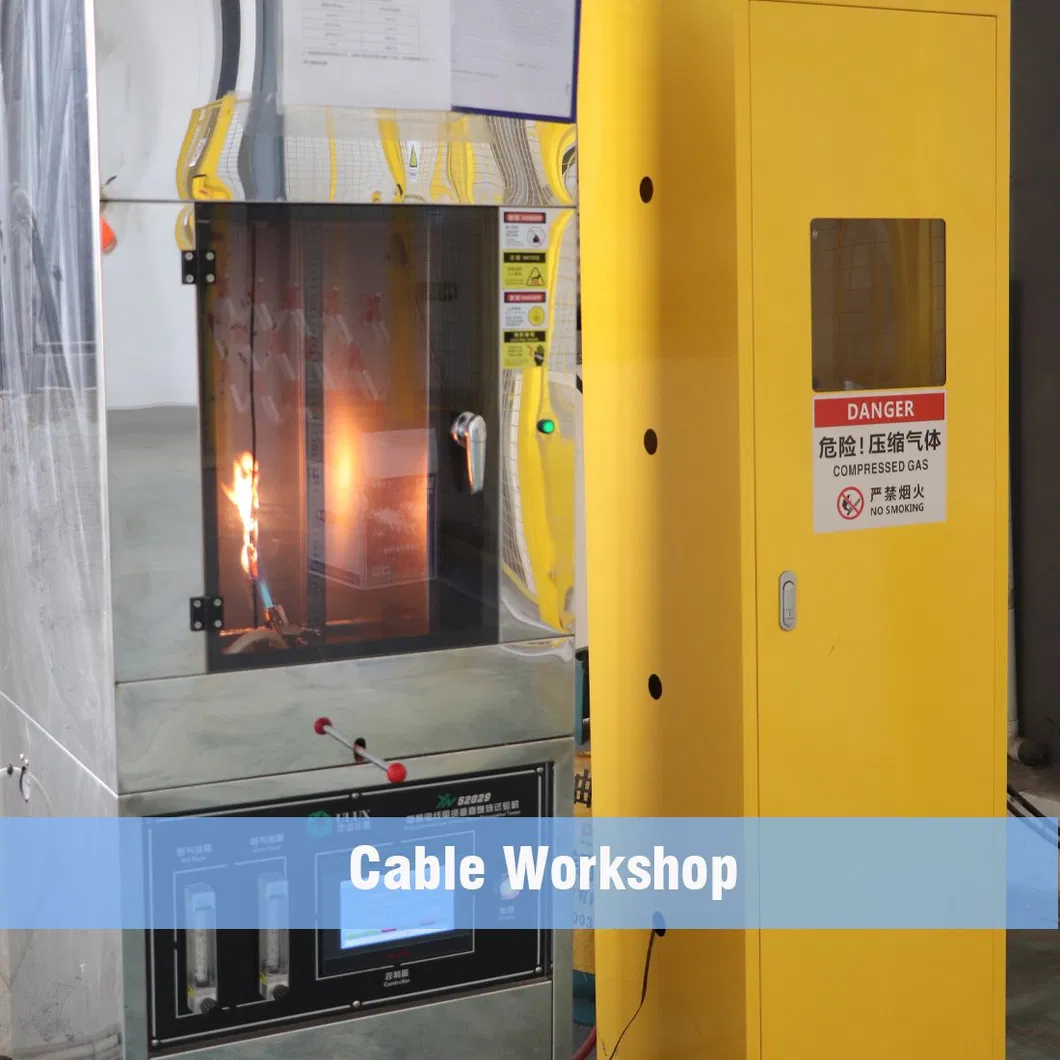

Professional Certification: ISO9001, ISO14001, ISO45001 Certified Factory with CNAS certified laboratory.

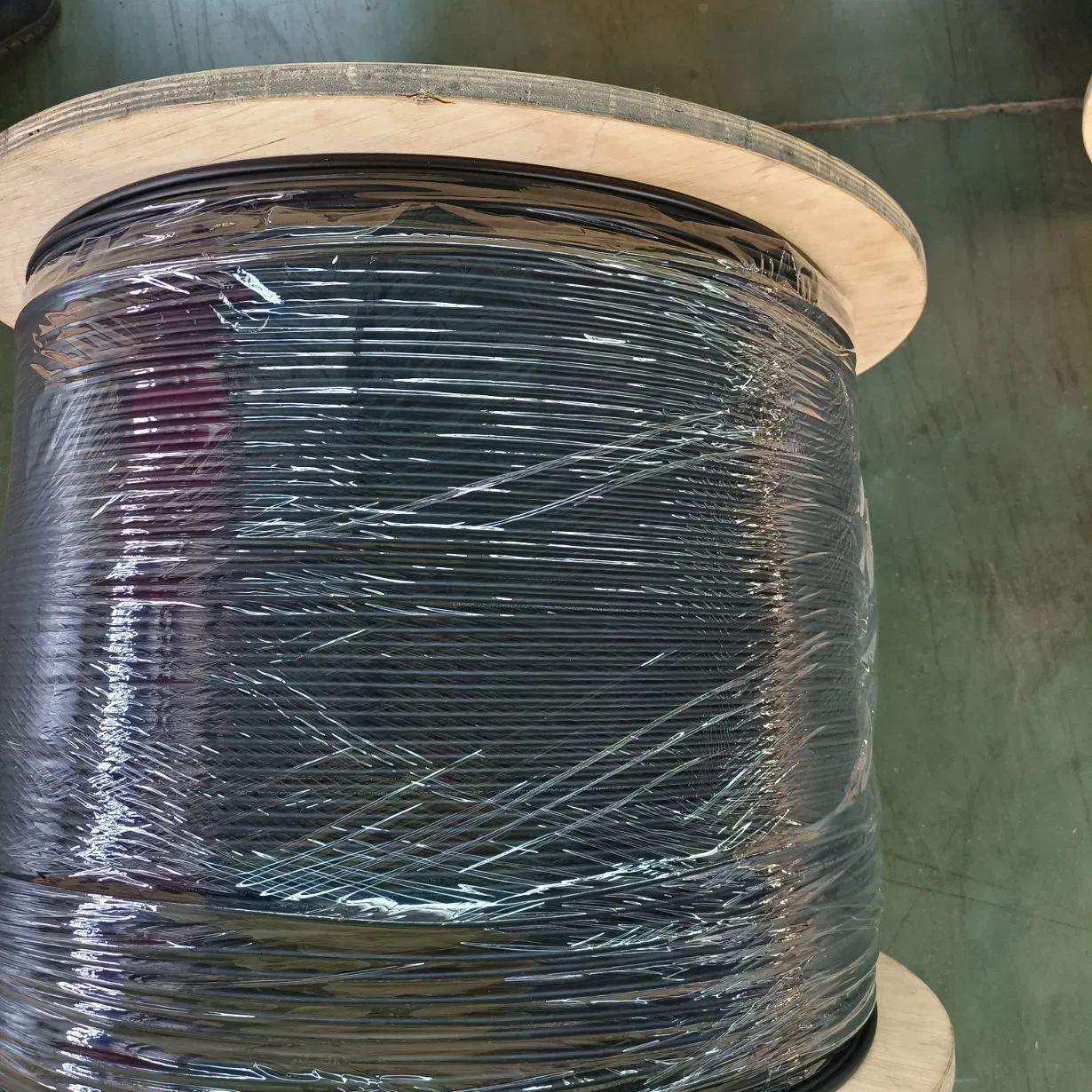

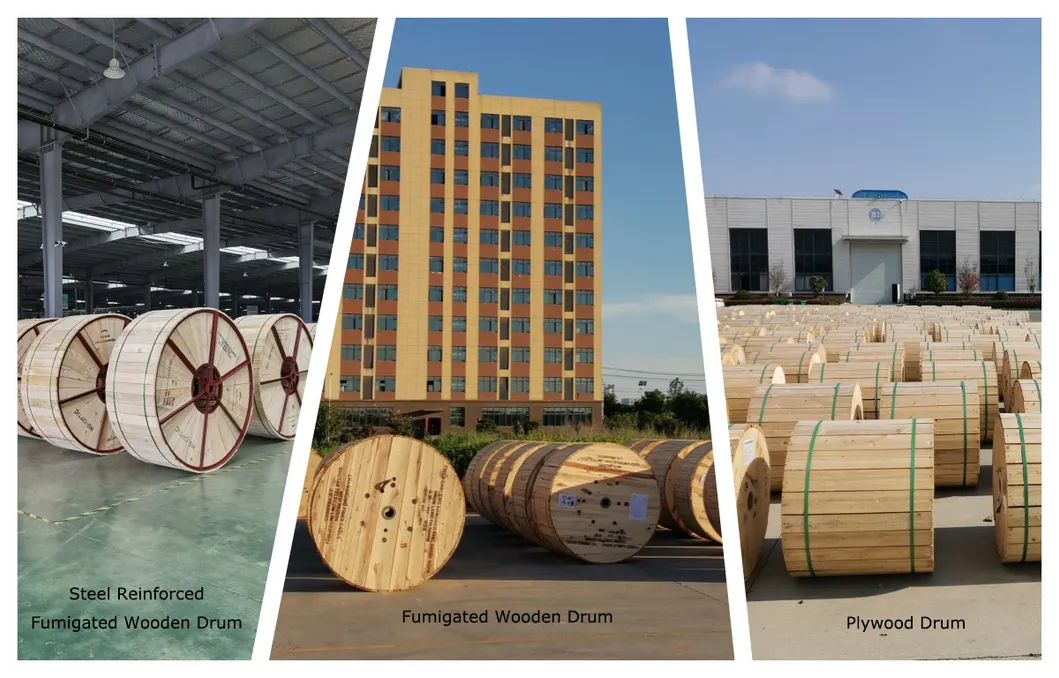

Drum Packing: Available in 1km, 2km, 3km lengths in secure wooden drums.

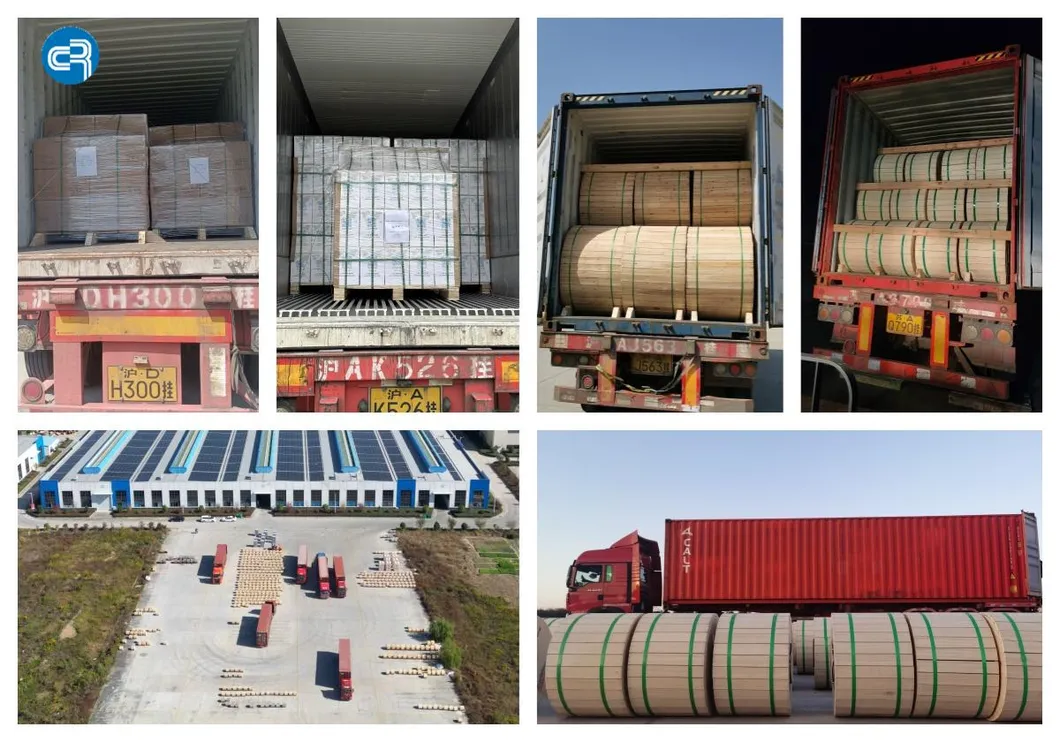

Shipping: Standardized logistics for safe domestic and international delivery.
