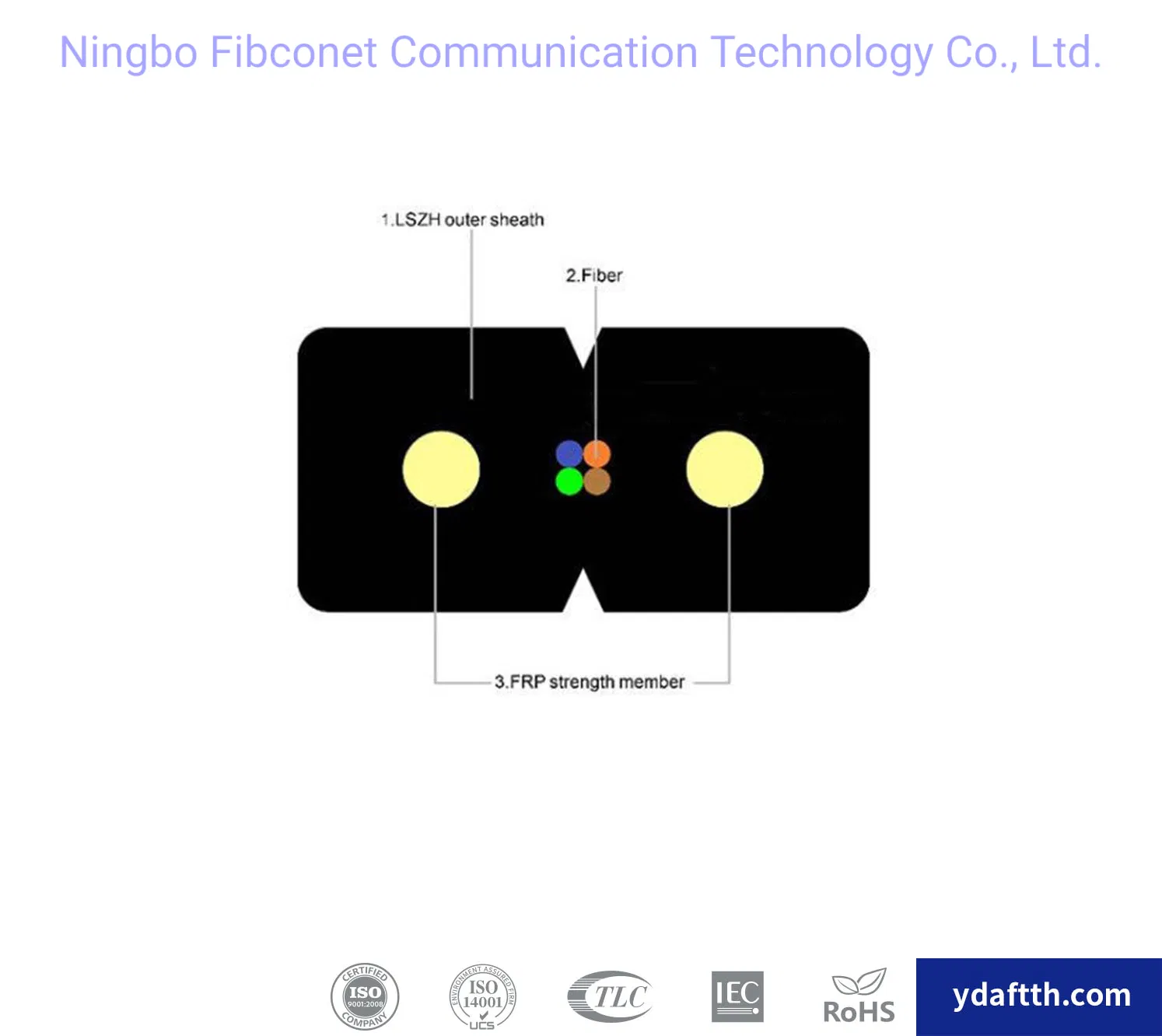

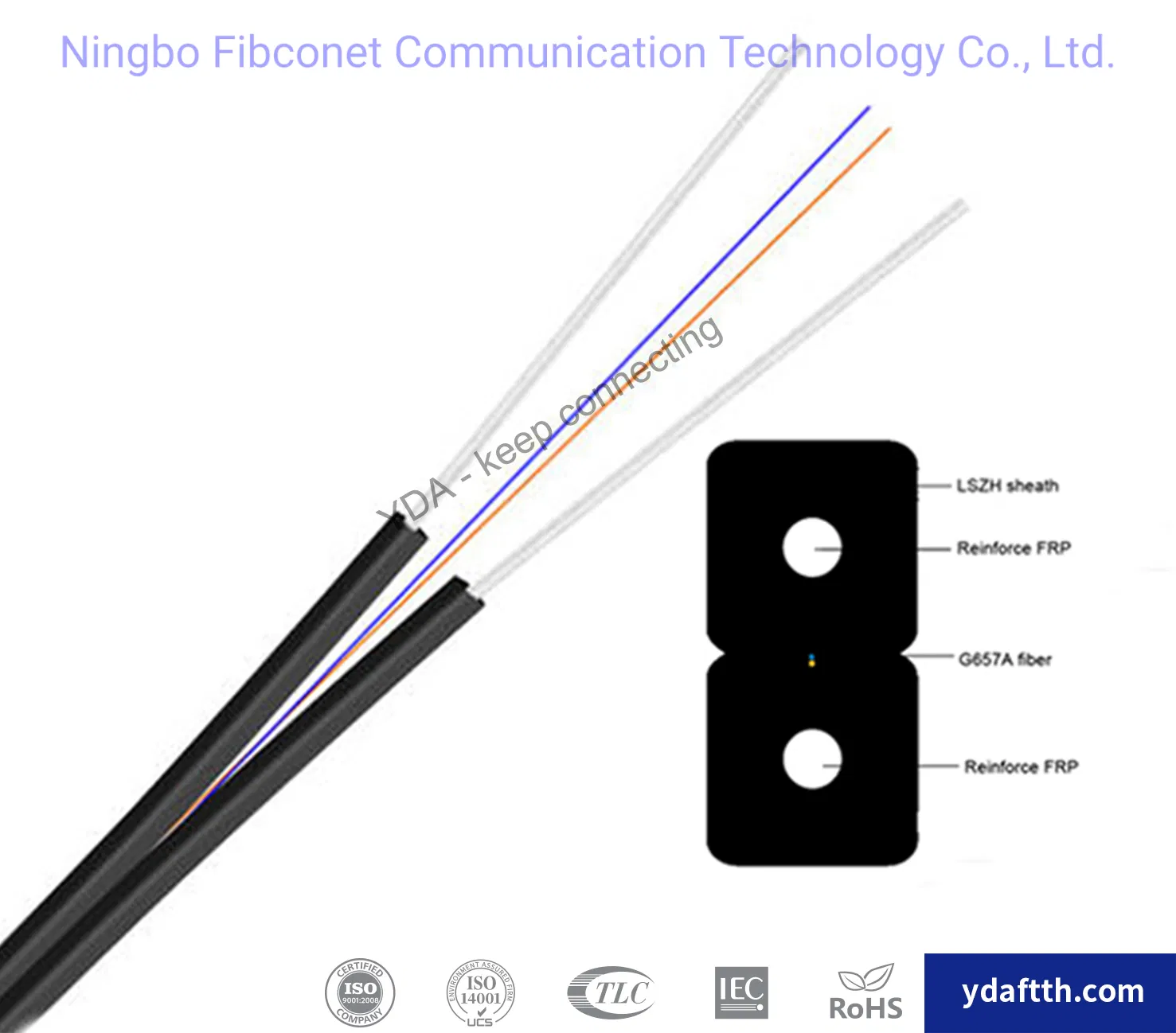

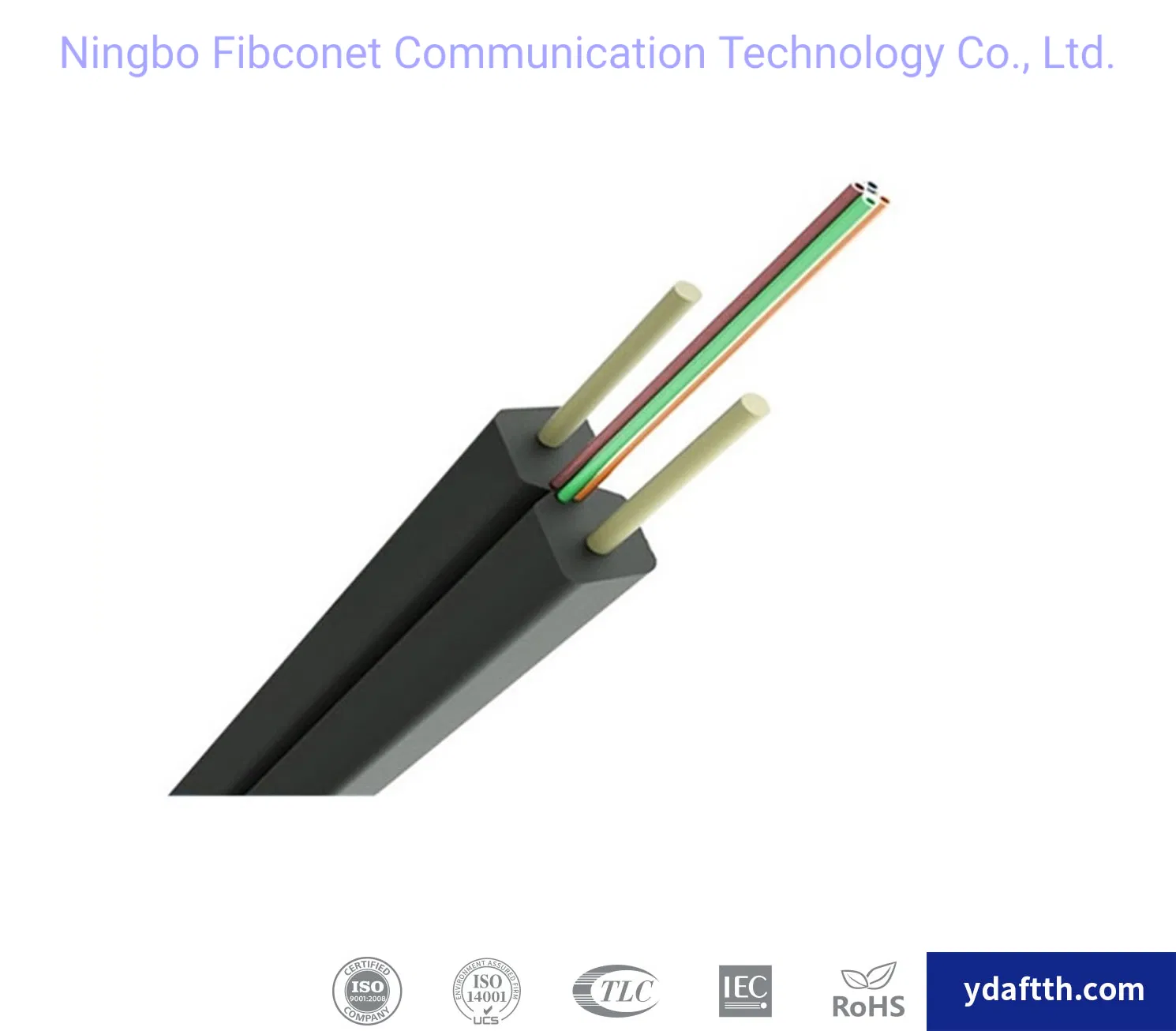

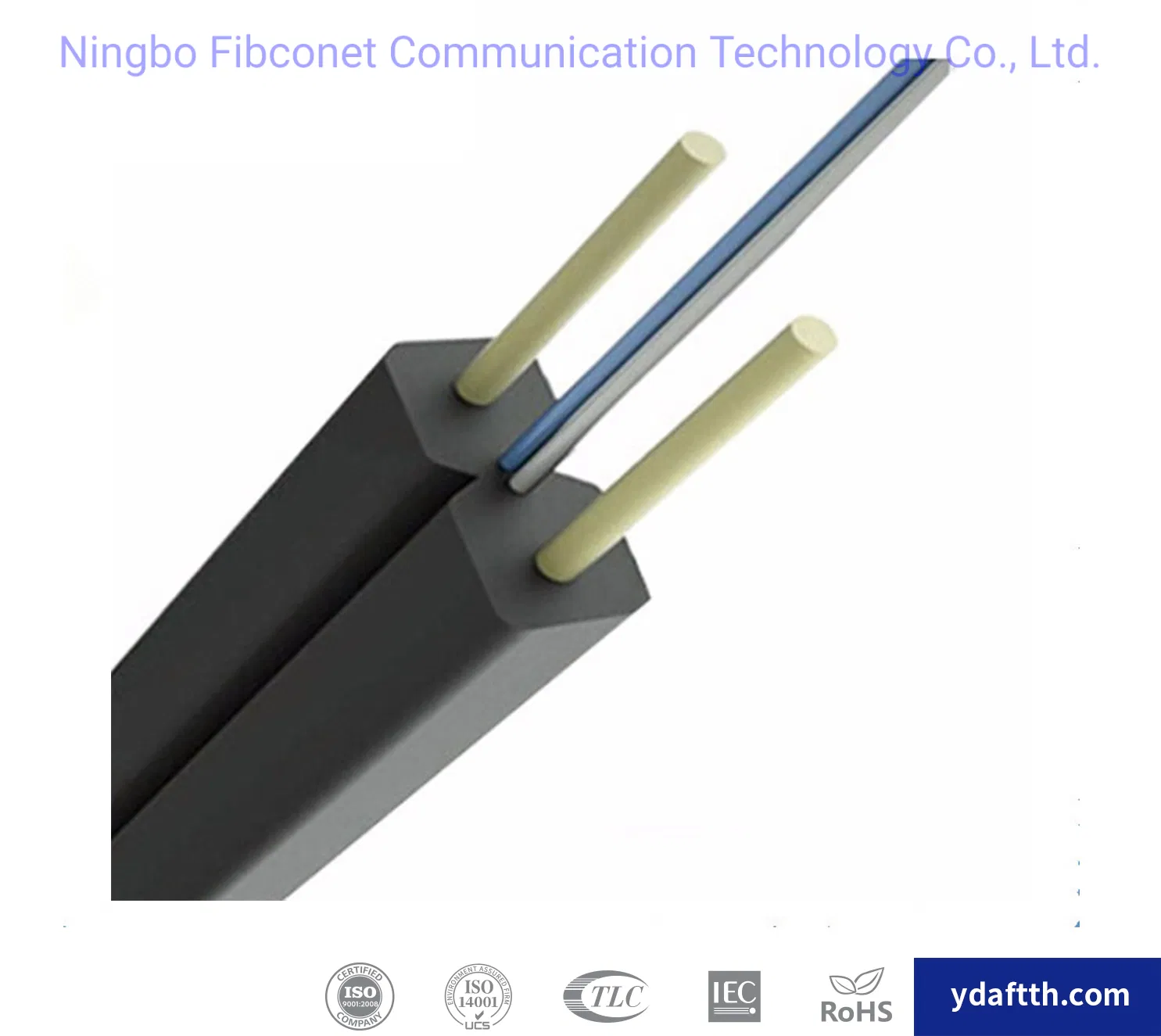

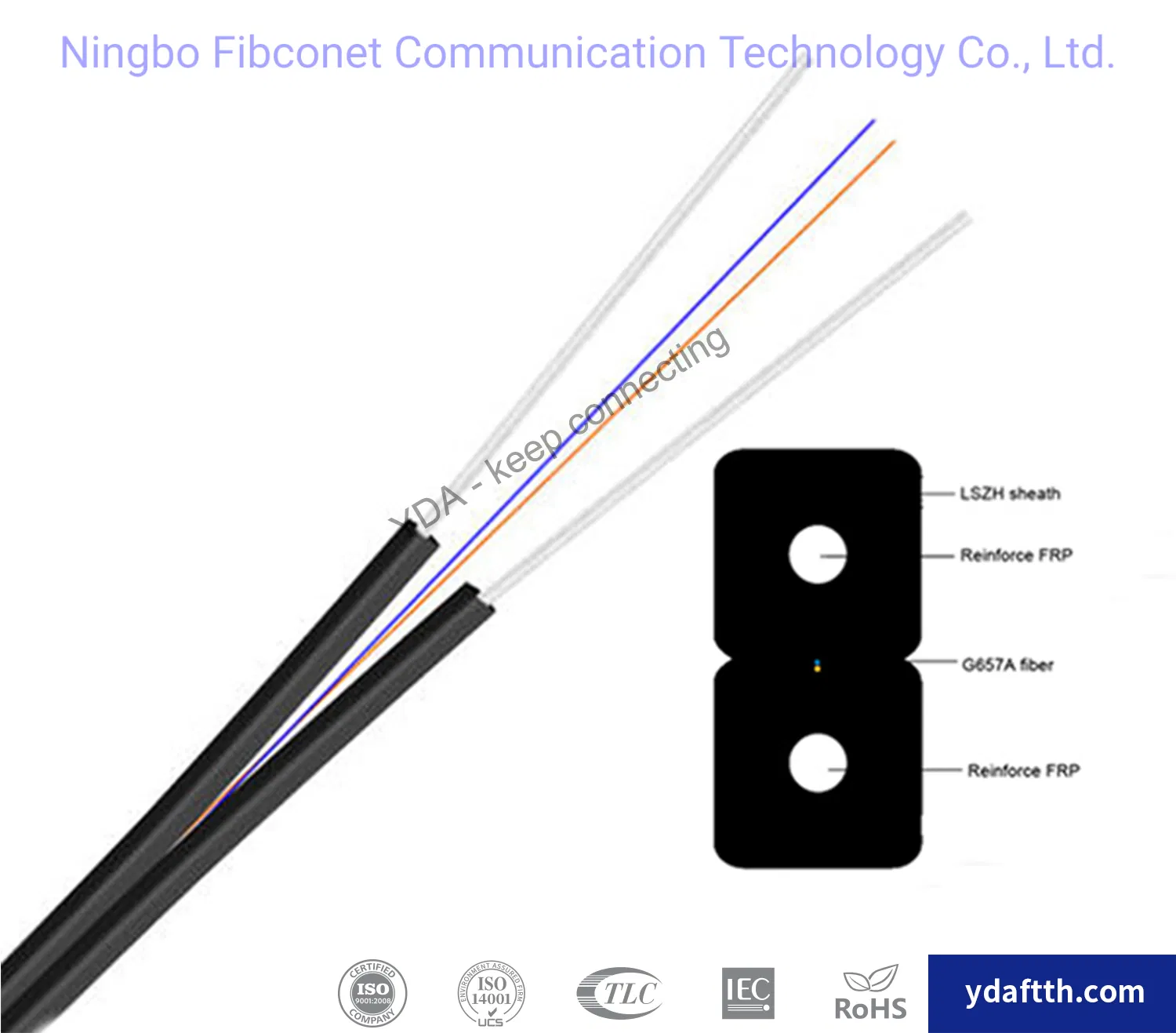

FTTX FTTH 1 2 4 Cores optical cable G657A1 G657A2 fiber GJXFH Singlemode Fiber Optic Drop Cable

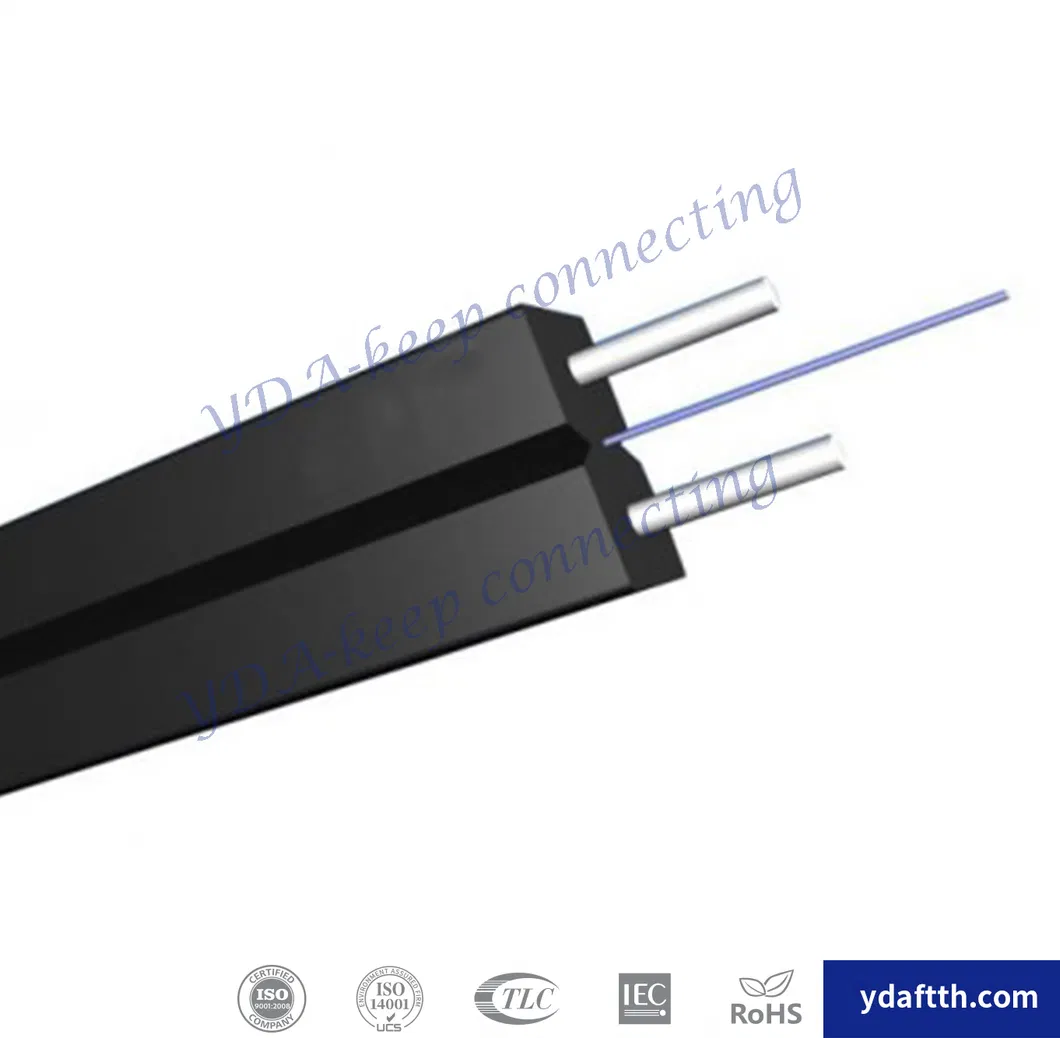

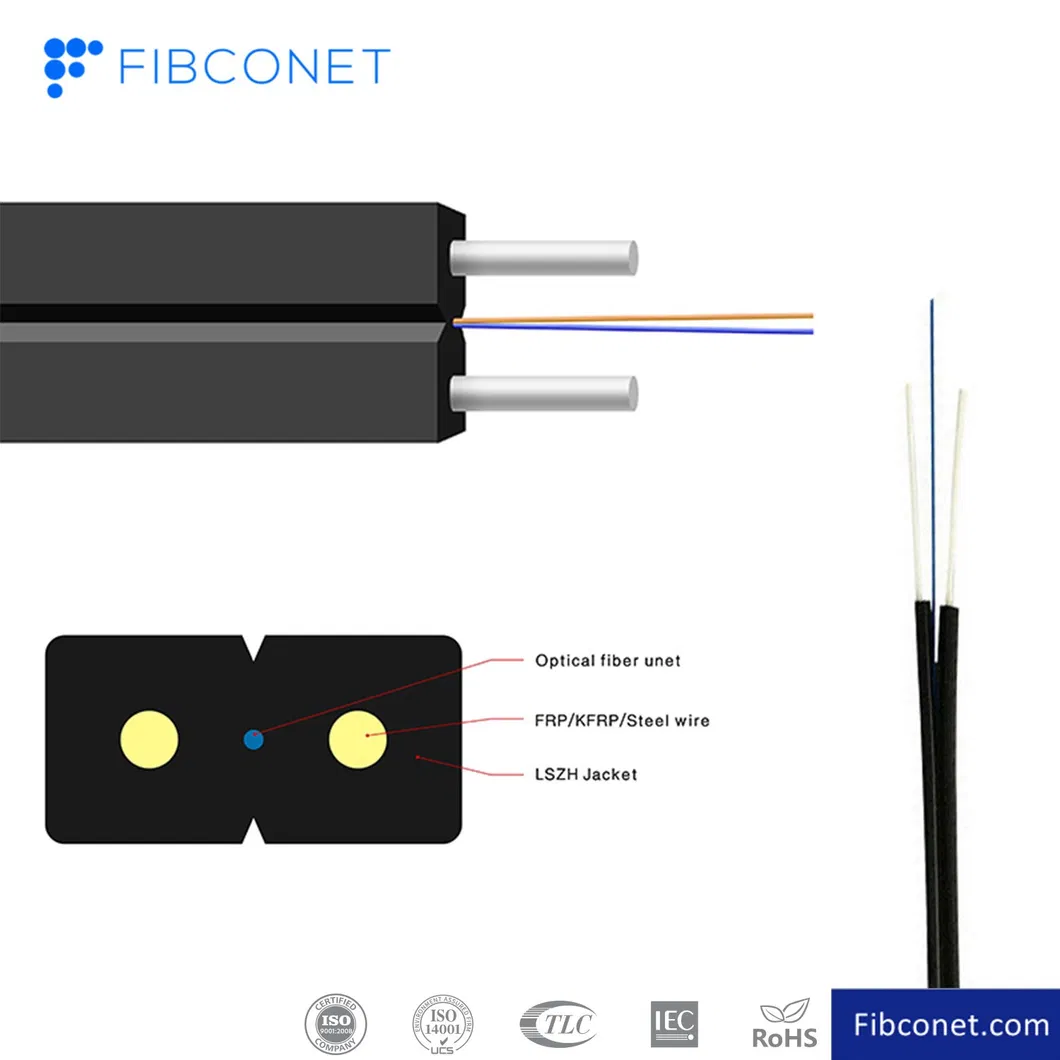

Fiber optic Drop cables for telecommunication (Bow-type) are specifically designed for Fiber to the User (FTTH) networks. They are ideal for connecting the terminal section of the cable to users, and are also highly applicable for Fiber to the Office (FTTO) and Fiber to the Building (FTTB) installations.
These FTTH drop cables are the perfect "last-mile" solution. We provide counts ranging from 1, 2, 4, to 12 cores. The structure and performance are optimized to meet the rigorous demands of modern FTTH applications.
| Cable Code | Fiber Count | Cable Size (mm) | Weight (kg/km) | Tensile Strength (N) | Crush Resistance (N/100mm) | Bending Radius (mm) |
|---|---|---|---|---|---|---|
| GJXFH | 1 | (2.0±0.1)x(3.0±0.1) | 9 | 40/80 | 500/1000 | 15/30 |
| GJXFH | 2 | (2.0±0.1)x(3.0±0.1) | 9 | 40/80 | 500/1000 | 15/30 |
| GJXFH | 4 | (2.0±0.1)x(3.0±0.1) | 9 | 40/80 | 500/1000 | 15/30 |
