The VRF air conditioners, also known as "one-to-many," is a type of system where one outdoor unit is connected to several indoor units. Each indoor unit can operate independently or be controlled together. The system has an outdoor unit connected by pipes to indoor units that have components like outdoor heat exchangers, compressors, and other parts. The indoor units consist of fans and direct cooling elements.
Using the pipes, the outdoor unit can supply cooling liquid to many indoor units. It controls the compressor's cooling fluid circulation and the flow into various indoor heat exchangers to meet the indoor cooling and heating needs.
The indoor temperature sensor controls the valve on the indoor unit's cooling pipe. By adjusting the pressure, the system can control the outdoor unit's compressor speed or change its operating mode to adjust the cooling capacity according to the load.

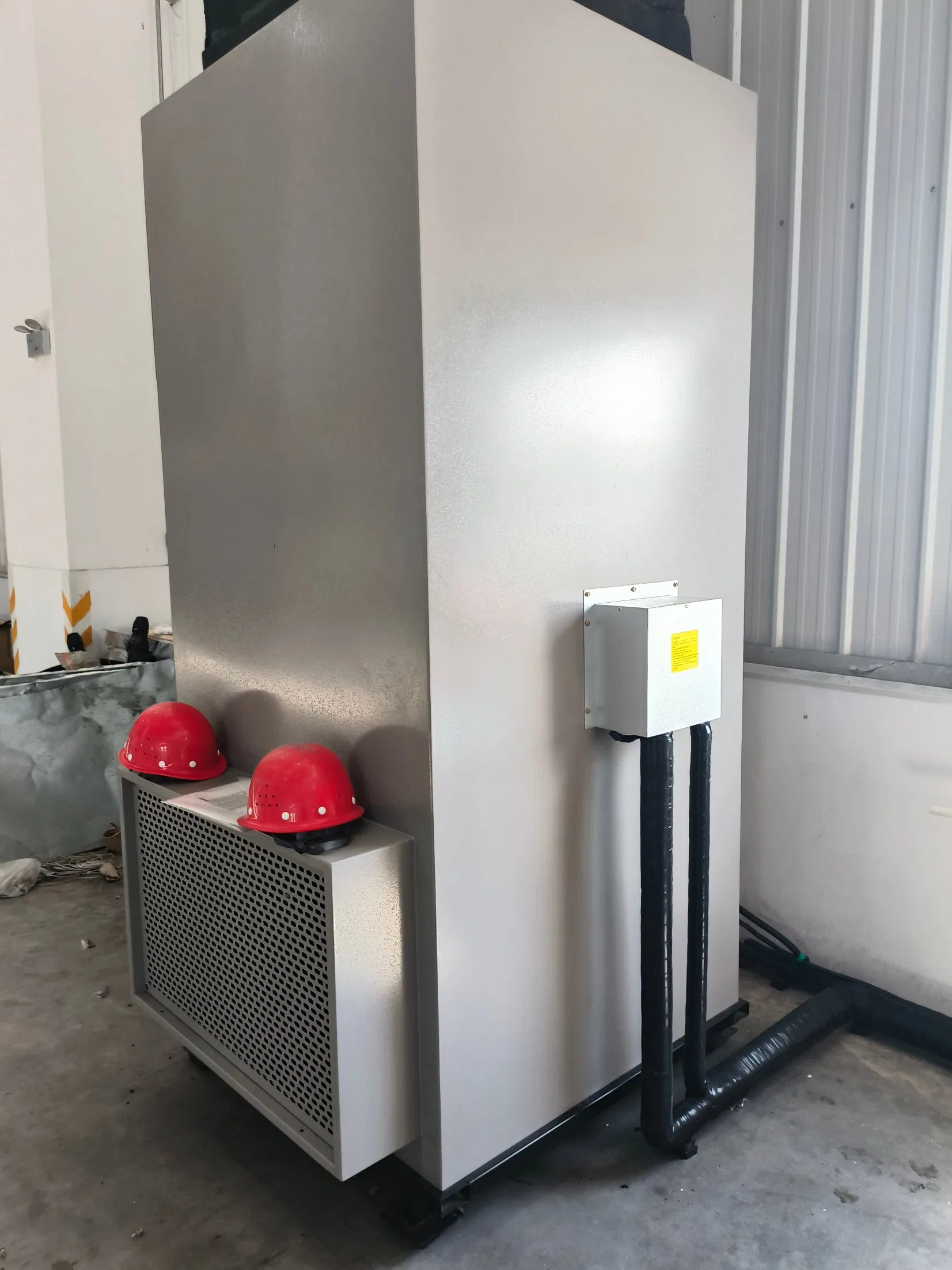

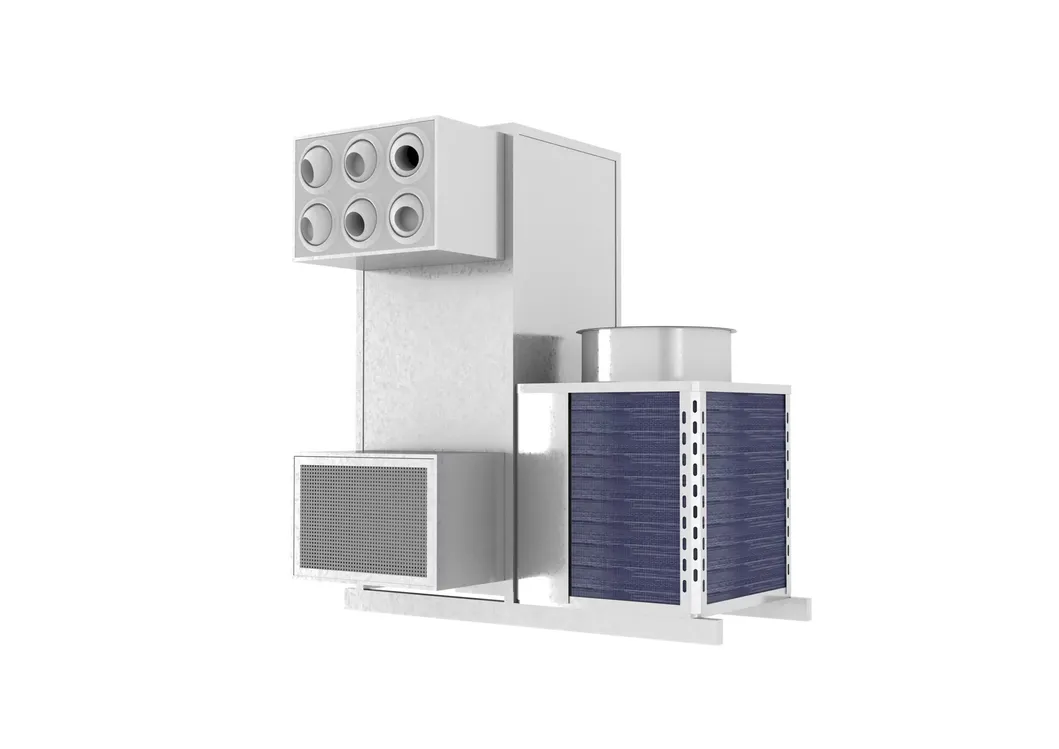

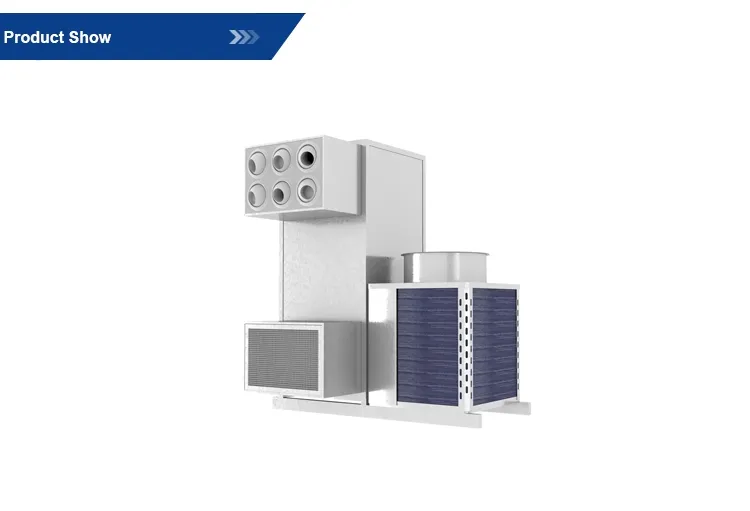

| Direct Expansion Side Mounted Jet-flow Air Conditioning Unit | ||
|---|---|---|
| Model | - | AirTS-C72 |
| Standard circulating air volume | m3/h | 12000 |
| Nominal cooling capacity (indoor 27ºC /outdoor 35ºC ) | kW | 72 |
| Nominal heating capacity (indoor 20ºC /outdoor 7ºC ) | kW | 68 |
| Nominal cooling input power | kW | 21.00 |
| Nominal heating input power | kW | 19.00 |
| Power supply (3phase, 5 wires) | - | 3N~380V 50Hz |
| Maximum fuse ampere (MFA) | A | 85 |
| Minimum circuit ampere (MCA) | A | 82 |
| Refrigerant | - | R410A |
| Applicable distance of lateral air supply | m | >45 |
| Control mode | - | VAV stepless regulation |
| Noise level outside | dB | <74 |
Our product line primarily consists of energy-efficient air conditioning systems specifically designed for high and large spaces (4 to 30 meters in height), encompassing:
These solutions effectively resolve diverse requirements such as cooling, ventilation, humidification, dehumidification, and dust removal.
