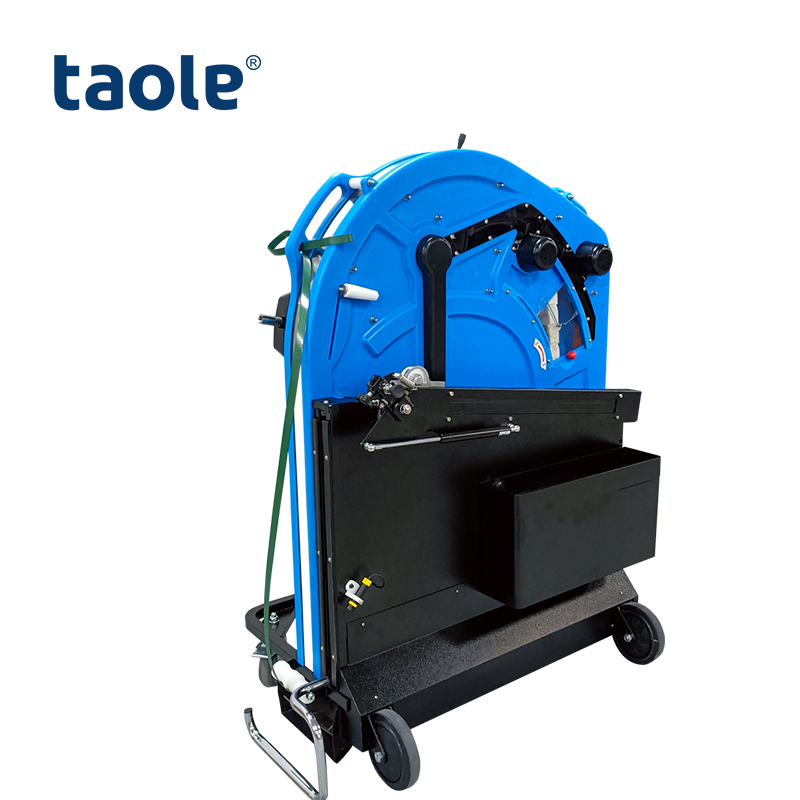

Advanced Pallet Strapping System 900e for Logistics and Manufacturing Facilities

Still deciding? Get samples of $ !
Order Sample

Product Description

📋 Basic Information
Model NO.
TP-900E
Application
Waste Paper, Steel Pipe, Household Chemicals, Medical, Cosmetics, Pure Water, Fruit Drinks
Strapping Material
Plastic Tape
Packaging
Cartons
Automatic Grade
Semi-Automatic
Strapping Mode
Buckling Type
Driven Type
Electric
Structure
Hand Strapping
Strap Thickness
0.6-1.3mm
Strap Width
12-19mm
Charged Capacity
500-600 Times
Origin
China
HS Code
8422400000
Package Size
85.00cm * 105.00cm * 140.00cm
⚙️ Product Description
Healthy pallet strapping machine system with ergonomic, easy and efficiency. Electrical driven with wheels plus chainlength to ensure enough the most flexibility for multi pallet strapping without human bending and walking around.

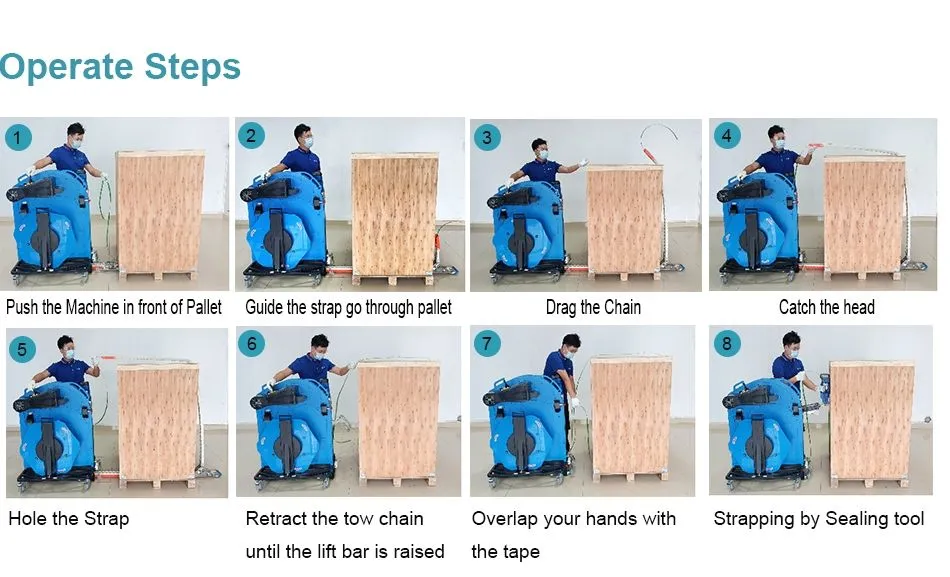

Ergonomic pallet strapping machine with electrically driven chain lance via motor is a hot product in packing industry. It can make you have an elegant way for strapping without bending down, which is a comfortable way by one person from one side only. Just roll the strapping machine in front of the pallet. Then the Chainlance pulls the strap through under the pallet and up again on the rear side and over the pallet. The strap is tensioned and welded securely by the sealing head.
📏 Product Parameters
ModelTP-800 Pallet Strapper
Chain Length9.3 meters
Packing Size200mm ≤ Width, 75mm ≤ Height ≤ 2.6 meters (Customizable to 3m)
Strap Width/ThicknessWidth: 12-19mm | Thickness: 0.6-1.3mm
Chain SpeedsHorizontal: 40-54m/min | Vertical: 44-60m/min
Max Thrust320 N
Noise Level79 dB(A)
WeightN.W 105 KGS / G.W 210 KGS
Lithium Battery33.3V/ 32Ah, Approx 150-400 Straps per charge
ChargerInput AC100-240V, 50-60Hz; Output DC 33.6V 10A
🔍 Detailed Images

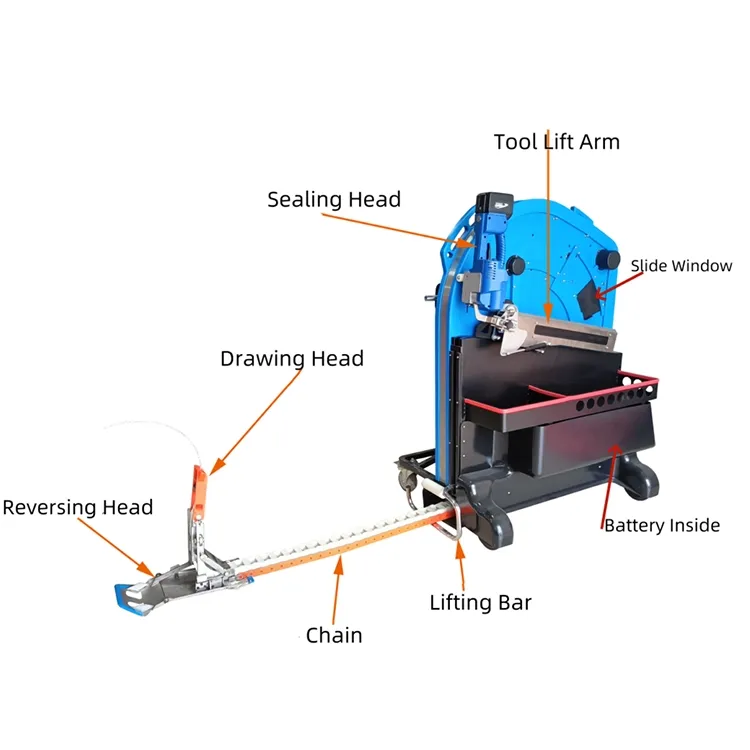

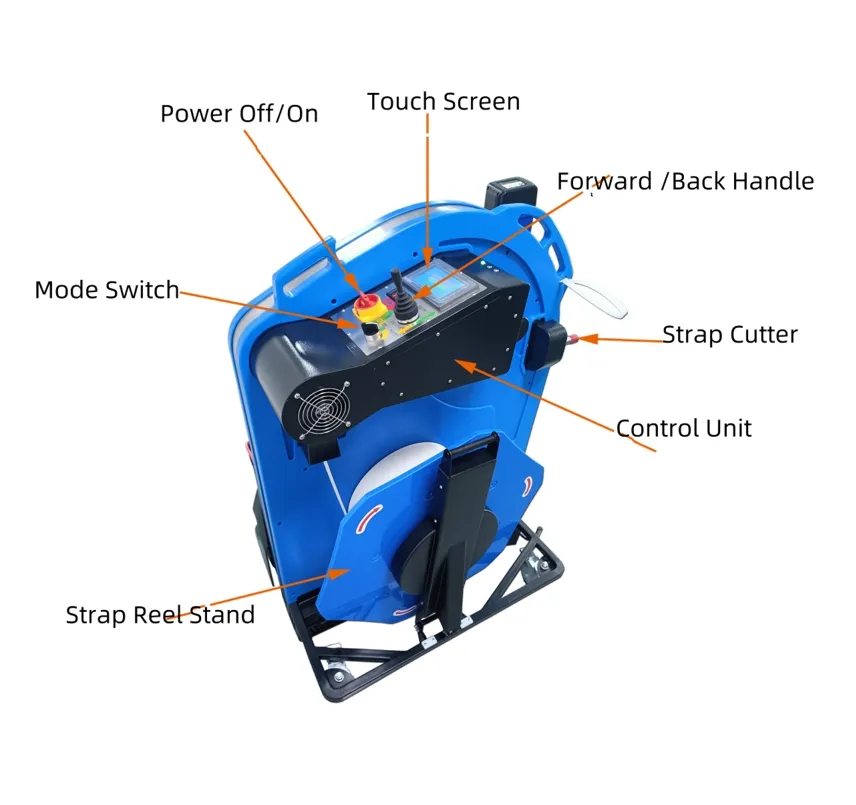

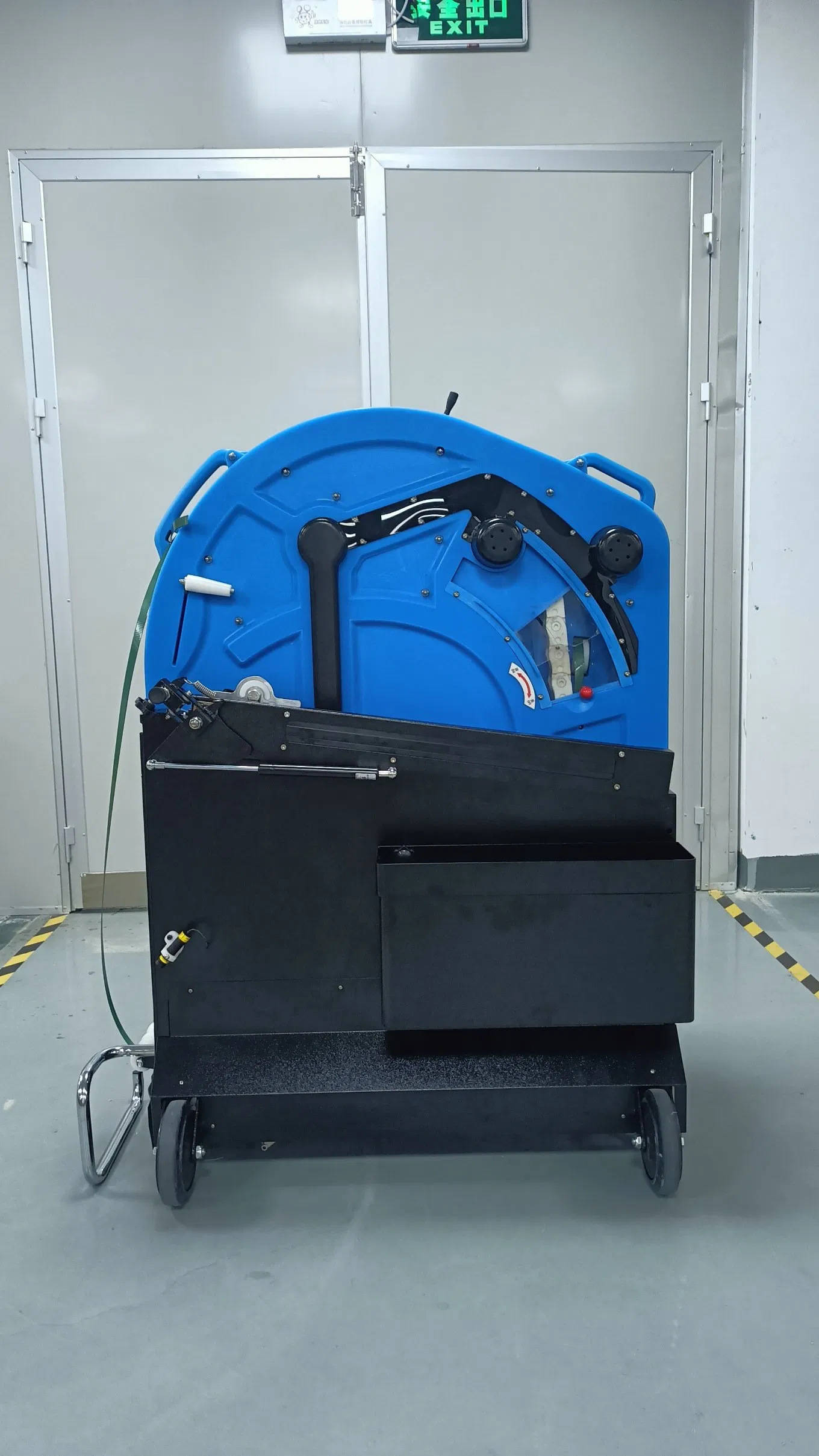

Detail Overview
🏢 Manufacturer Profile

Founded in 2004, we are a comprehensive enterprise specializing in the manufacturing, research and development, and design of automatic packaging equipment. With over 18 years of experience in both domestic and overseas markets, our engineering team continuously updates equipment for energy conservation, efficiency, and safety.

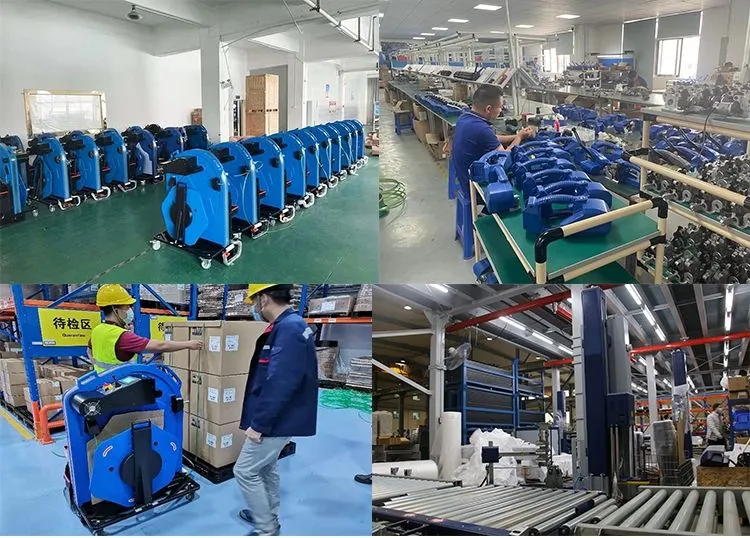

Workshop
📜 Certifications
Certificates
📦 Product Packaging

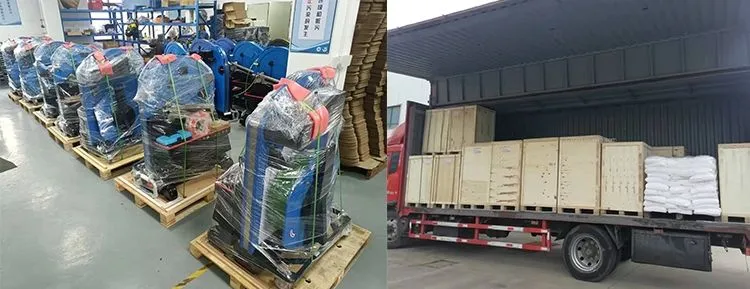

Shipping Package
Frequently Asked Questions
What is the power supply of the mobile pallet strapping machine?
Power Supply is 220V 50Hz with a replaceable lithium battery (33.3V/32Ah).
How can I choose the right model?
We offer the TP-800 or customized options. Please share your pallet specifications so we can evaluate and present the most suitable solution.
What is the delivery time?
Standard machines are in stock and ready in 3-7 days. Customized services normally take 20-30 days after order confirmation.
What is the warranty period and after-sales service?
We provide a 1-year warranty (excluding wearing parts). We offer video guides, online service, or local third-party support.
What are your payment terms?
We accept multiple payment terms depending on order value. We suggest 100% payment for fast shipments.
How is the equipment packed for shipment?
Heavy machines are packed in secure wooden cases for safe delivery by Air or Sea to prevent damage during transit.
